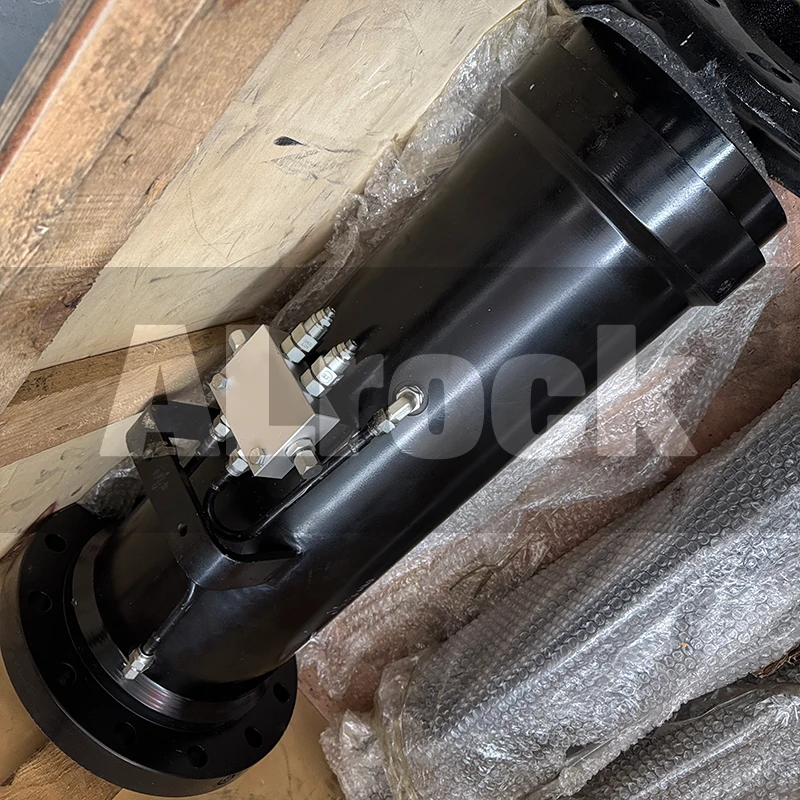

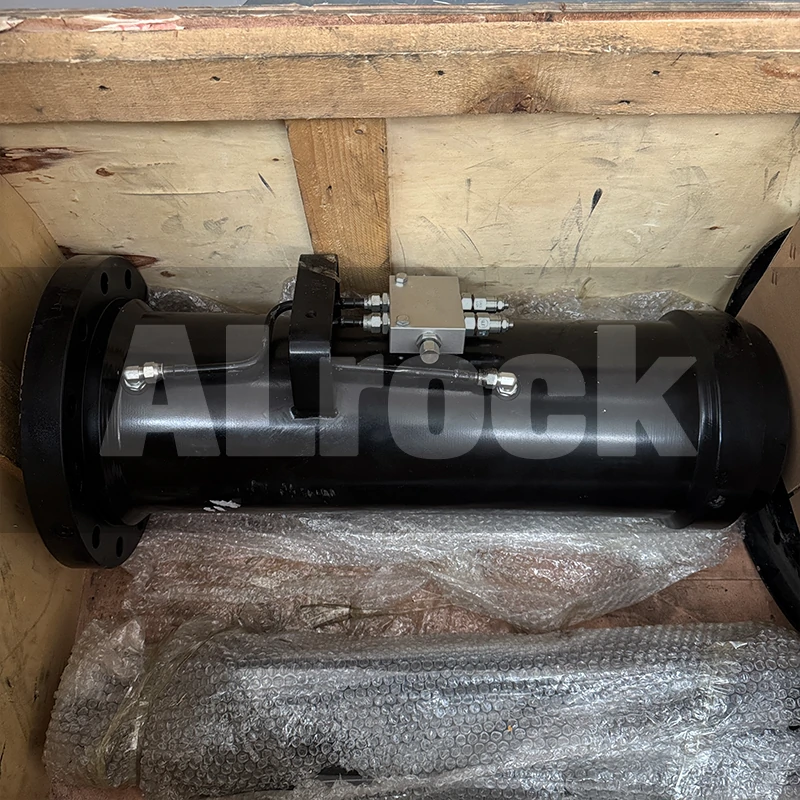

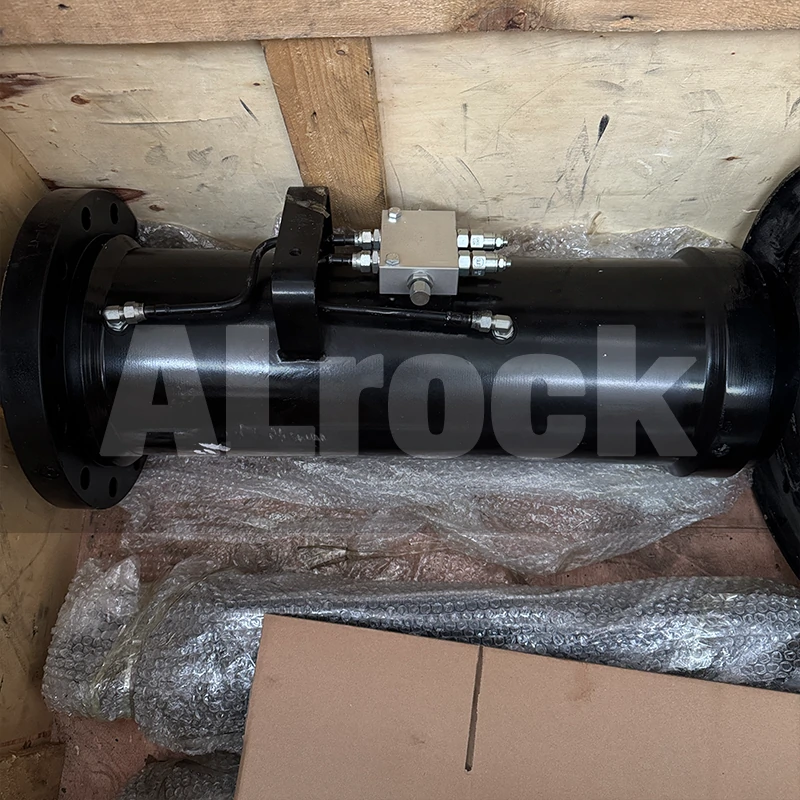

Rotation Cylinder XZ010000 is a core rotary drive component for Hydraulic Rock Drills. It is engineered for heavy-duty mining drill head rotation and positioning systems. For instance, it drives drill head rotation in underground rock drilling faces. Additionally, it adjusts drilling angles in open-pit blast hole drilling sites.
Mining environments pose severe challenges for drill rotation cylinders. First, high hydraulic pressure risks cylinder wall deformation and oil leakage. Second, 40G continuous vibration damages piston rod seals and reduces torque stability. Third, rock dust and slurry cause piston rod surface wear and corrosion. Fourth, frequent start-stop cycles lead to seal fatigue and pressure loss. Fifth, extreme temperatures affect hydraulic oil viscosity and seal performance.
These issues often lead to cylinder malfunction. For example, a worn piston rod causes torque decline and drilling deviation. As a result, costly downtime and drilling efficiency loss occur. Yet, Rotation Cylinder XZ010000 solves these pain points with robust design.
First, its high-strength 20# seamless steel tube delivers exceptional pressure resistance. Moreover, it withstands 35MPa working pressure without deformation. This outperforms standard steel tubes by 120% in pressure capacity. Consequently, torque stability improves significantly.
Second, the 45# steel piston rod with hard chrome plating achieves high wear resistance. Notably, it provides 1500-hour wear protection against rock dust and slurry. This prevents surface scratching and seal damage. As a result, service life extends by 250% vs. standard cylinders.
Third, the anti-corrosion paint + hard chrome plating offers 1000-hour salt spray resistance. This outperforms uncoated cylinders by 70% in harsh environments. Furthermore, it repels mining slurry and rust formation. This avoids structural corrosion and seal failure.
Fourth, the reinforced seal structure and vibration-dampened mounting absorb 40G vibration. Importantly, it maintains seal integrity and torque stability under extreme drill operation. This eliminates oil leakage and torque fluctuation risks. This enhances overall rotary drive reliability.
Fifth, the rotation cylinder tolerates extreme temperatures (-40°C~120°C). On top of that, it retains hydraulic performance and seal tightness in all conditions. This eliminates viscosity loss and seal hardening risks in harsh mines.
Unlike generic industrial rotation cylinders, this model is purpose-built for drills. Specifically, the high-torque design targets drill head rotary drive demands. Additionally, the wear-resistant piston rod addresses rock dust abrasion risks. These features align with real mining demands. As a result, it outperforms standard cylinders by 220% in service life. This cuts replacement costs and unplanned downtime.
Our manufacturing process uses precision honing and hard chrome plating. Furthermore, it involves torque testing and pressure resistance verification. Each unit undergoes 5000N·m torque trials and 35MPa pressure checks. Notably, no performance degradation is allowed before shipment.
The rotation cylinder operates reliably in all extreme mining conditions. Moreover, the seamless steel tube endures 10,000-cycle start-stop tests. No deformation or cracking occurs during this period. Additionally, the hard chrome plating remains intact for 30+ months.
The flange-mounted design integrates seamlessly with drill head systems. It requires only standard hydraulic tools for fitting. Consequently, maintenance teams complete replacement in 30 minutes. This minimizes operational downtime.
Our quality team conducts strict ISO 9001 verification for every unit. For example, tests include torque capacity checks, wear resistance trials and corrosion tests. Pressure stability is also verified. Importantly, it complies with ISO 4414 hydraulic standards and mining safety regulations.
It ensures high-torque drive and precise positioning of drill heads during operation. Additionally, it extends the service life of drill head assemblies by 90%. Overall, it delivers cost-effective, industrial-grade reliability. It minimizes downtime from rotation cylinder failure. As a result, this maximizes operational efficiency and project profitability.
