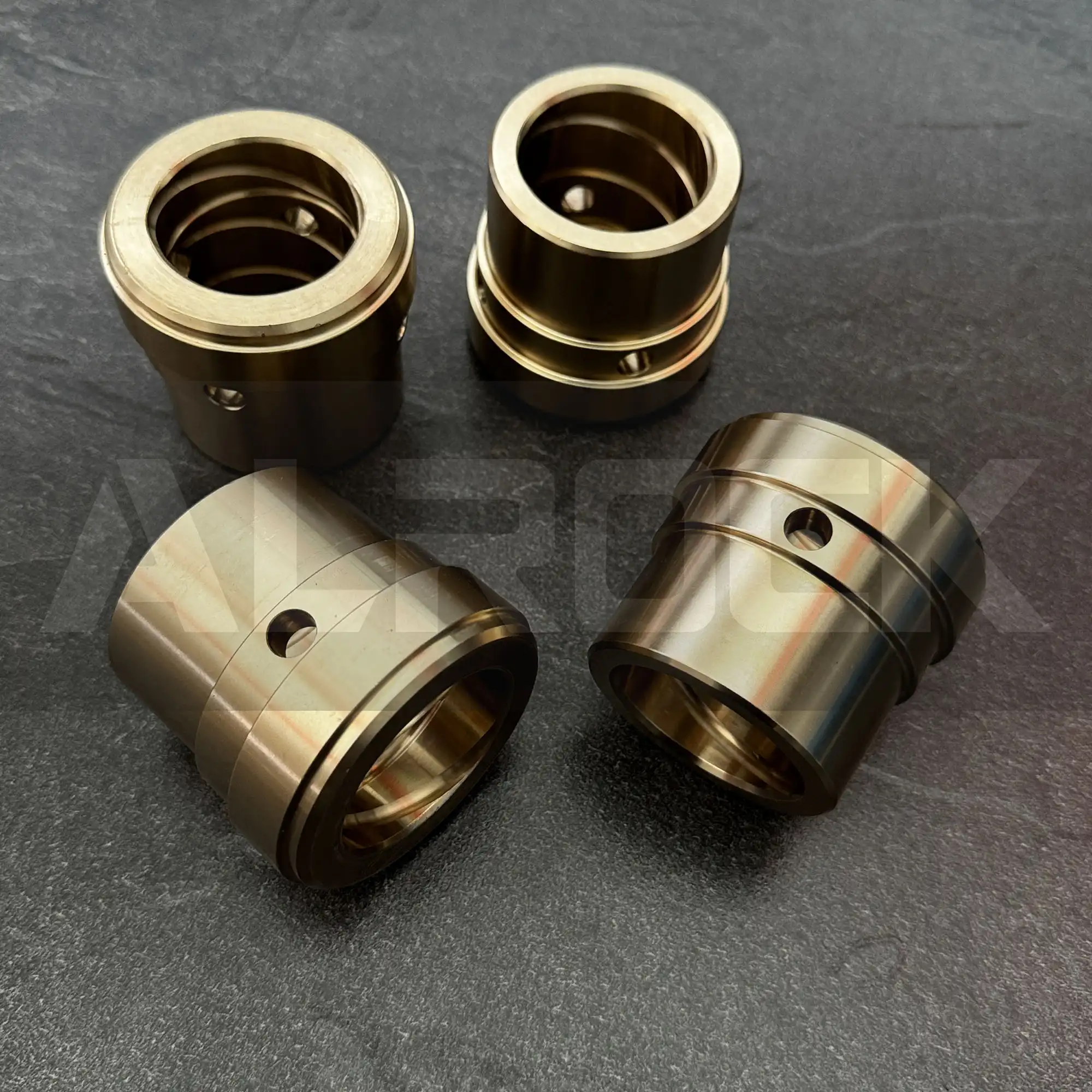

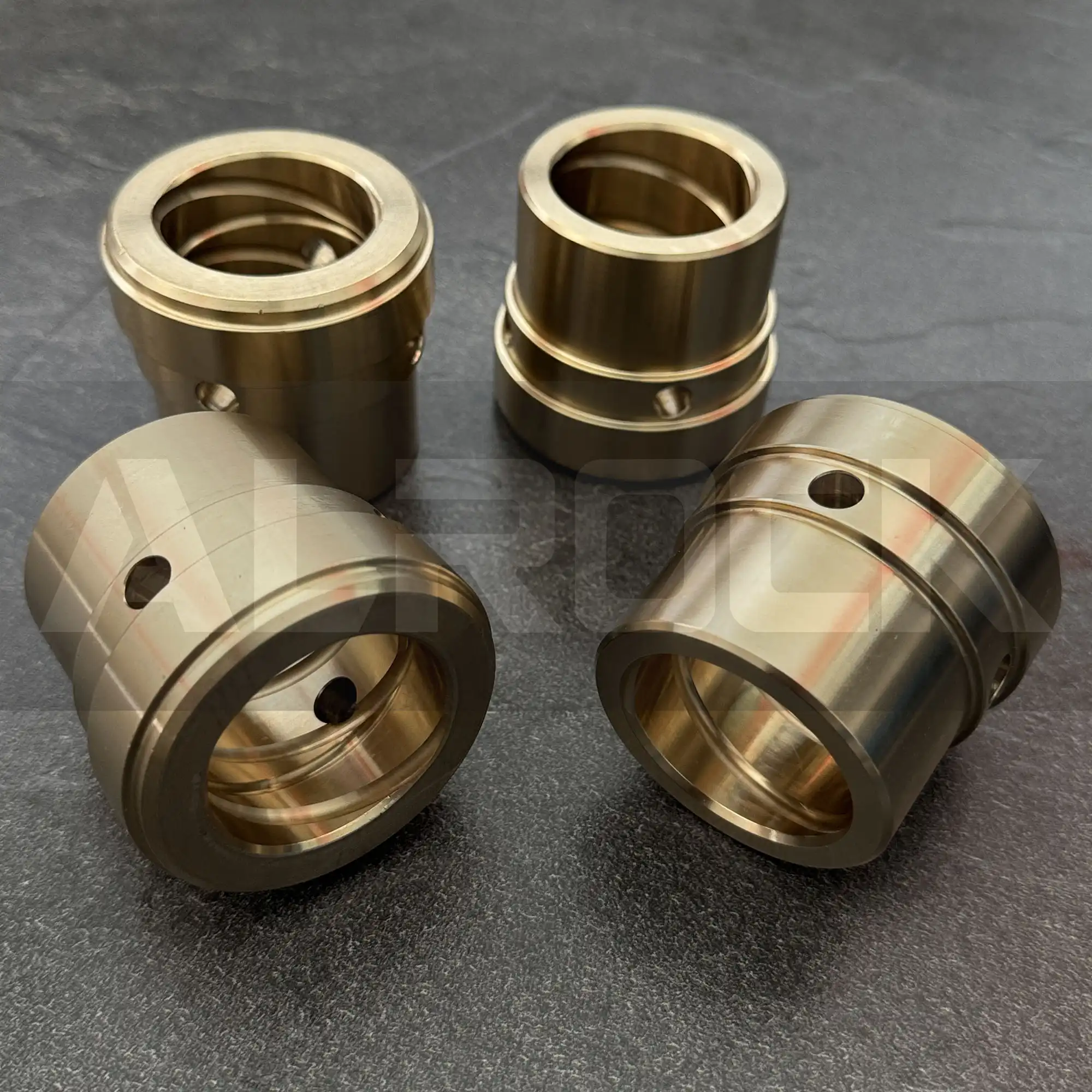

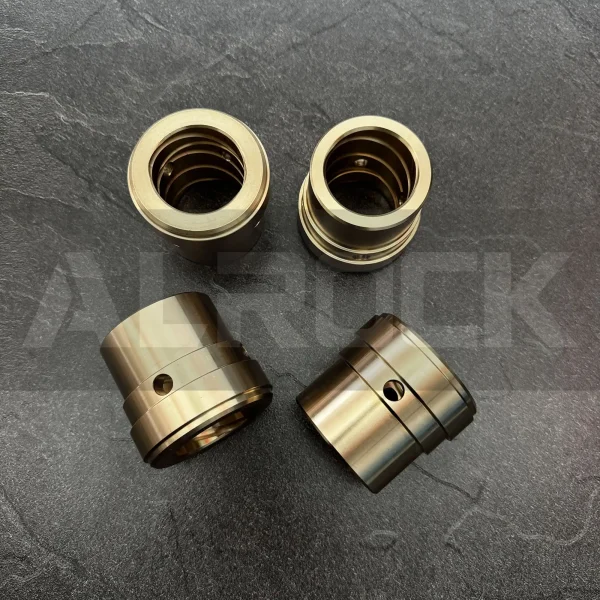

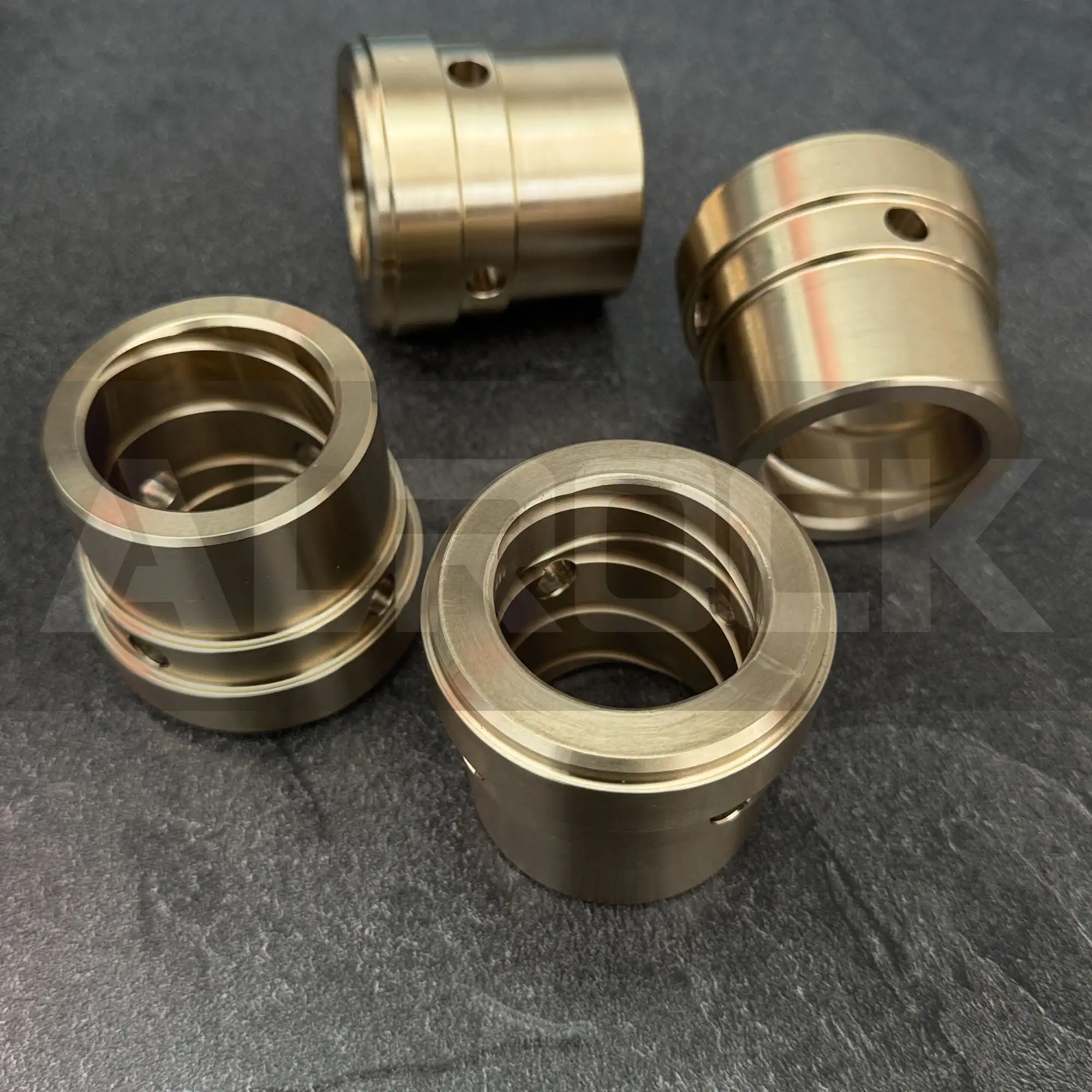

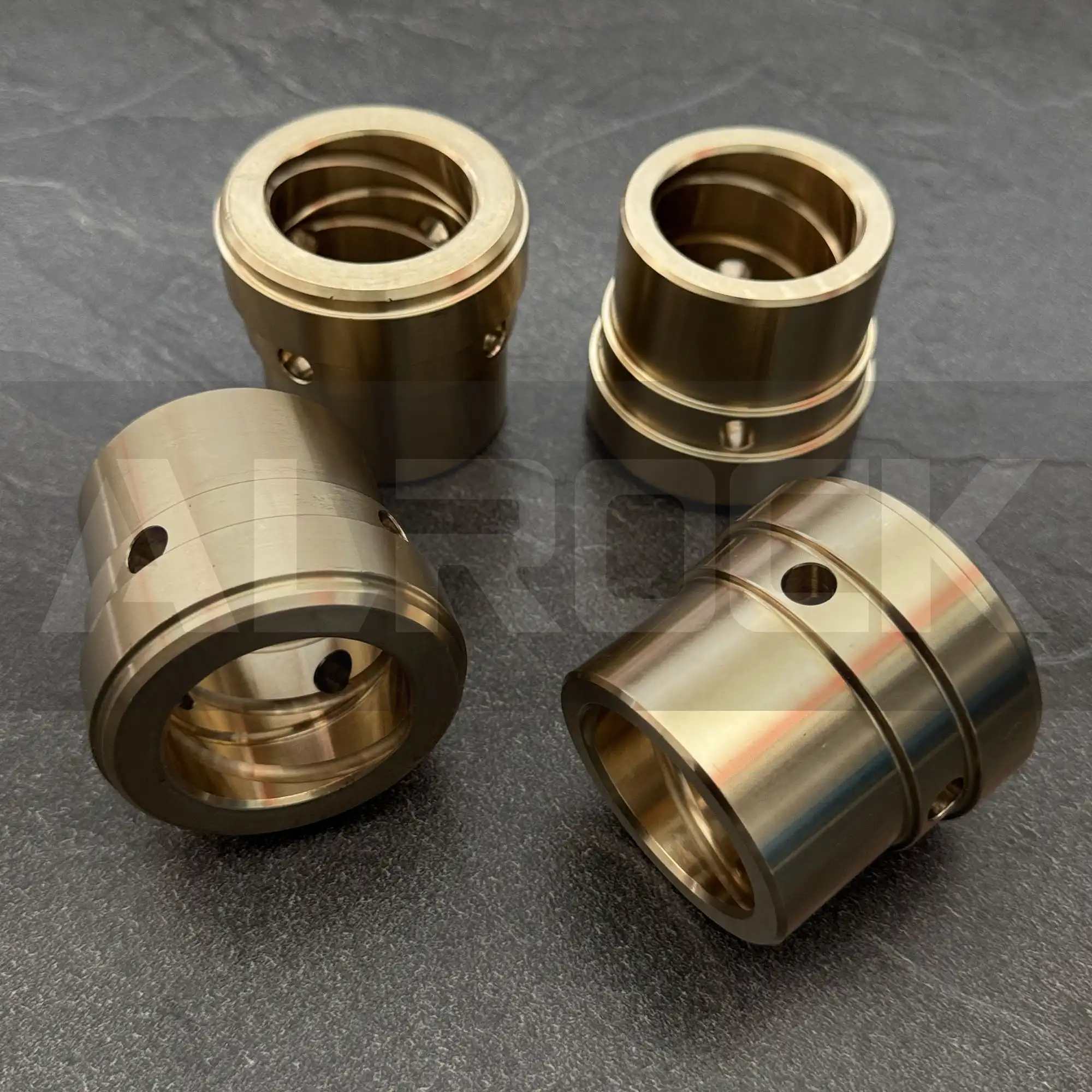

Head Housing 15052008 C1200043471 Hydraulic Rock Drill Component for Underground Mining Equipment

Part Number: 15052008\C1200043471
  • Material: Nitrided alloy steel (SAE 4140, tensile strength ≥1000 MPa)
  • Dimensions:
    • Length:
    • Inner Diameter:
    • Outer Diameter:
  • Weight: 5.8 kg (estimated based on similar Sandvik head housings)
  • Pressure Rating: 300 bar (continuous operation), 350 bar (burst pressure)
  • Compatibility: Direct fit for UD391 series hydraulic rock drills
  • Mounting:
  • Surface Treatment: Nitrided finish (HV 500 hardness) for wear resistance
Add to quote
Nitrided Alloy Steel Head Housing
Engineered to provide structural integrity and vibration resistance in high-stress hydraulic rock drilling applications, this head housing is critical for maintaining stability in UD391 series underground mining equipment.



Technical Specifications & Design
Constructed from SAE 4140 alloy steel with a nitrided surface (HV 500 hardness), the housing offers exceptional resistance to wear and fatigue under continuous operation. The 220 mm length (ISO 1133 H7 tolerance) and M24 x 2.0 threaded ports (SAE J514 compliant) ensure compatibility with standard hydraulic connections. The dual-layer design—combining a rigid steel core with a shock-absorbing rubberized inner sleeve—minimizes lateral movement and reduces stress on adjacent components.



Performance Advantages



  • Pressure Stability: Maintains alignment at 300 bar continuous pressure, with a 350 bar burst pressure rating for safety redundancy.
  • Vibration Dampening: Rubberized inner sleeve absorbs percussion energy, extending service life of drill rods and hydraulic hoses.
  • Ease of Installation: Threaded ports allow quick mounting without specialized tools, reducing downtime during maintenance.



Applications



  • Underground Mining: Essential for supporting hydraulic rock drills in UD391 series rigs during tunnel boring and rock excavation.
  • Heavy Machinery: Used in excavators and loaders to stabilize hydraulic systems in impact-driven tasks.
  • Industrial Hydraulics: Supports material handling systems and presses, ensuring precision in high-frequency operations.
