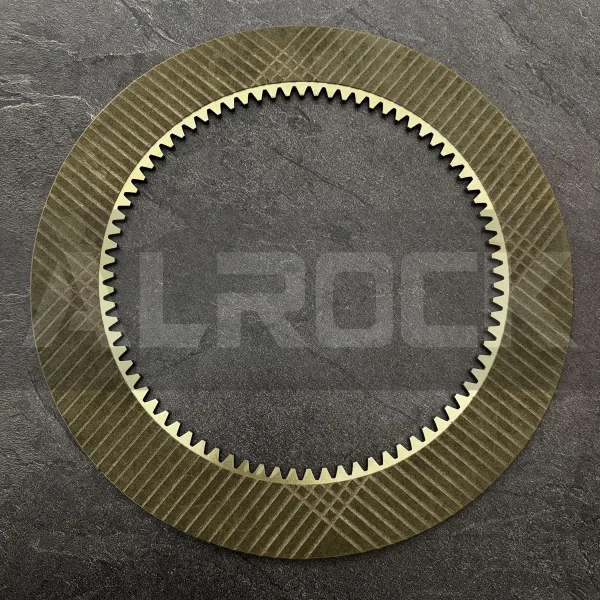

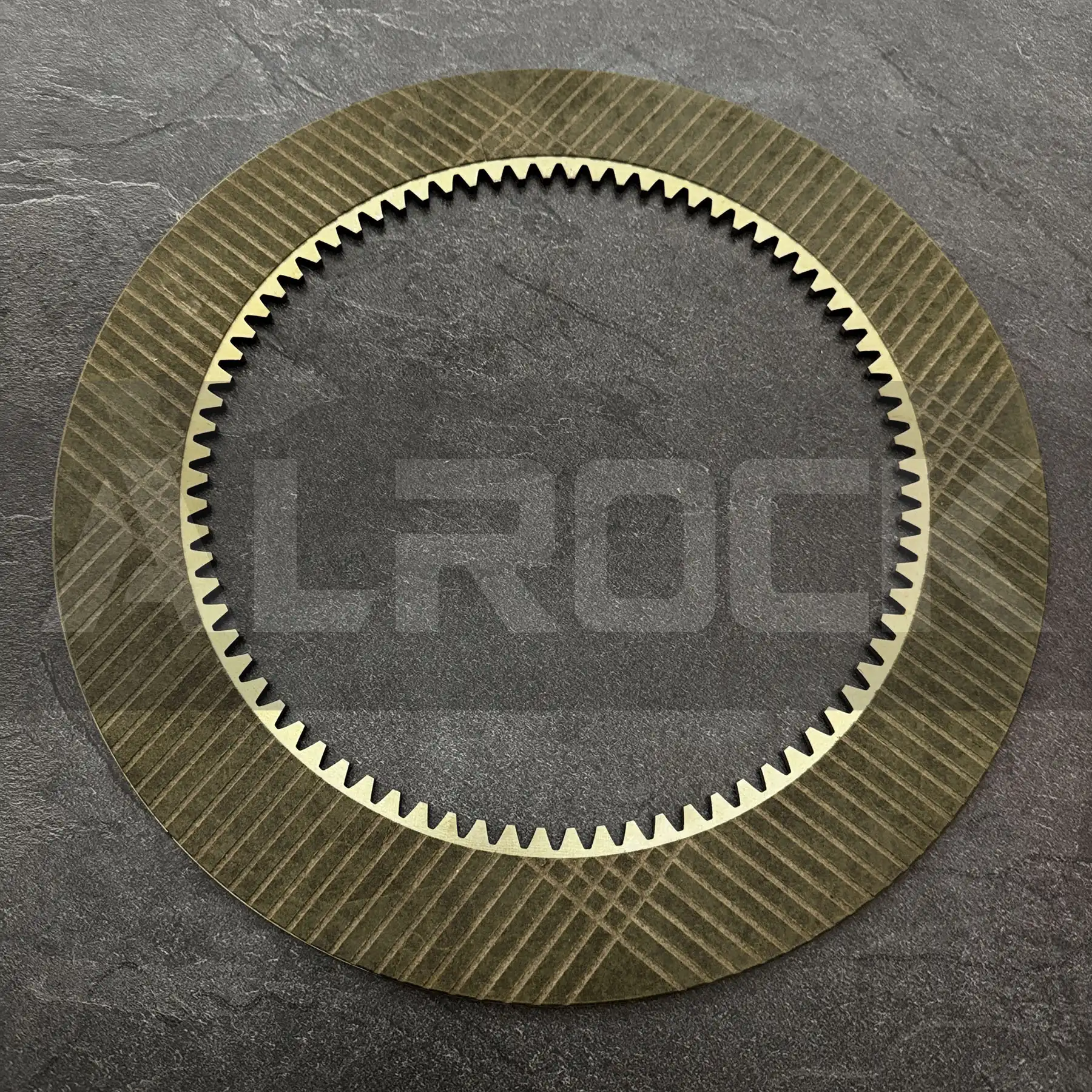

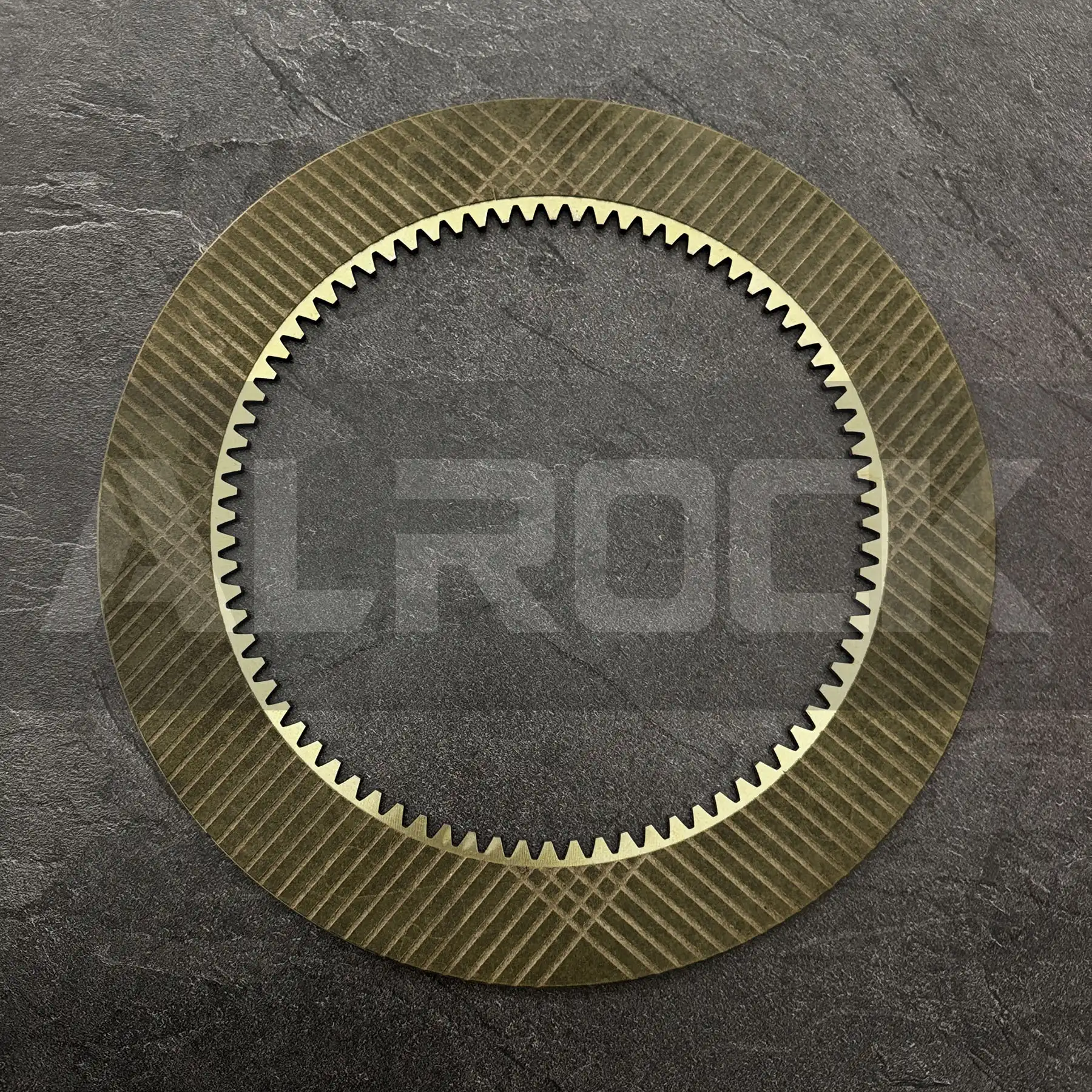

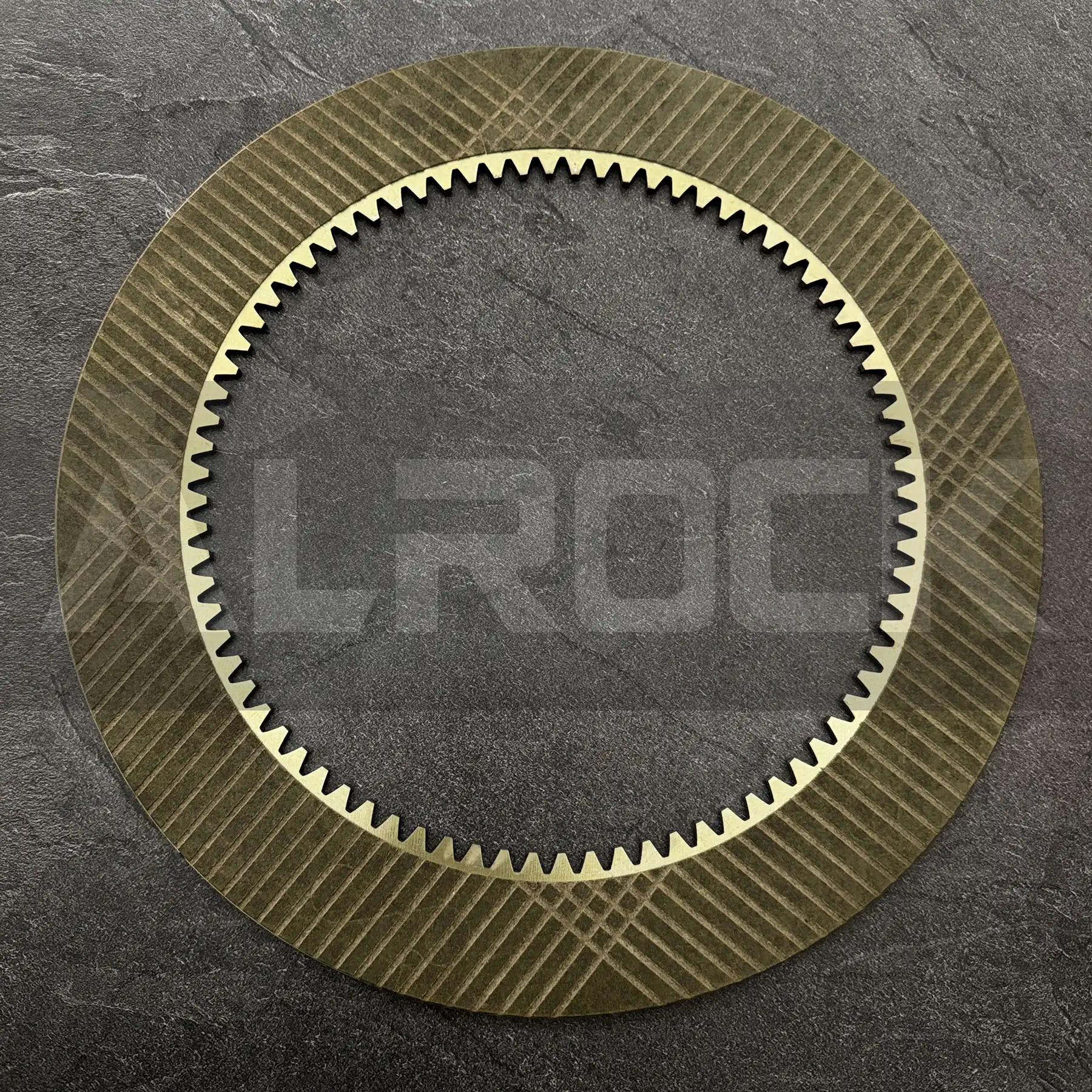

C110002090004 Friction Plate for Mining Vehicle Wet Axles – Copper-Based, 0.4 Friction Coefficient, Oil-Cooled Design
Copper-based sintered material with resin reinforcement | 0.4 static friction coefficient | 0.38 dynamic friction coefficient
-30°C to +200°C operating temperature | Compatible with mineral oil and ATF fluids | 500-hour oil immersion test passed

Friction Plate C110002090004 Copper-Based for Mining Vehicle Wet Axles

Part Number: C110002090004
  • Material:
    • Copper-based sintered alloy with resin reinforcement
    • 0.4 static / 0.38 dynamic friction coefficient (ASTM G99)
  • Performance:
    • Operating temperature: -30°C to +200°C
    • Wear rate: <0.01mm/1000 cycles
    • Service life: 100,000 cycles (ISO 15484 tested)
  • Design:
    • Oil-cooled compatible with mineral oil/ATF
    • Uniform friction surface pattern for consistent braking
  • Compliance: ISO 15484 (friction materials for industrial brakes)
Add to quote
Heavy-Duty Friction Plate for Mining Vehicle Wet Axles
Engineered for the extreme conditions of mining vehicle wet axles, this friction plate delivers reliable braking performance through its copper-based sintered construction. Designed to operate in oil-cooled environments, it maintains consistent friction coefficients across wide temperature ranges, critical for safe and efficient vehicle operation .



Technical Specifications & Design
  • Core Components:
    • Copper-Based Sintered Alloy: Combines high thermal conductivity with wear resistance, ensuring stable performance even during prolonged braking. The resin reinforcement enhances friction stability, meeting ASTM G99 standards for coefficient consistency .
    • Oil-Cooled Compatibility: Optimized for use with mineral oil and ATF fluids, which dissipate heat and prevent glazing in wet axle systems.
    • Uniform Surface Pattern: Promotes even oil distribution and friction contact, reducing hot spots and extending service life .



Performance Advantages
  • Temperature Resilience: Operates reliably from -30°C (cold storage areas) to +200°C (high-load braking), eliminating performance drop in extreme conditions .
  • Durability:
    • 100,000-cycle durability test (ISO 15484) confirms long service life, reducing maintenance downtime.
    • Wear rate <0.01mm/1000 cycles ensures minimal dimensional change over time, preserving brake clearance.
  • Safety: Consistent friction coefficients (0.4 static / 0.38 dynamic) provide predictable braking force, critical for heavy mining vehicles carrying loads .



Applications
  • Mining Vehicles: Used in wet axle assemblies of haul trucks, loaders, and dumpers operating in abrasive and dusty environments.
  • Industrial Machinery: Compatible with oil-cooled brake systems in construction equipment and material handlers.
