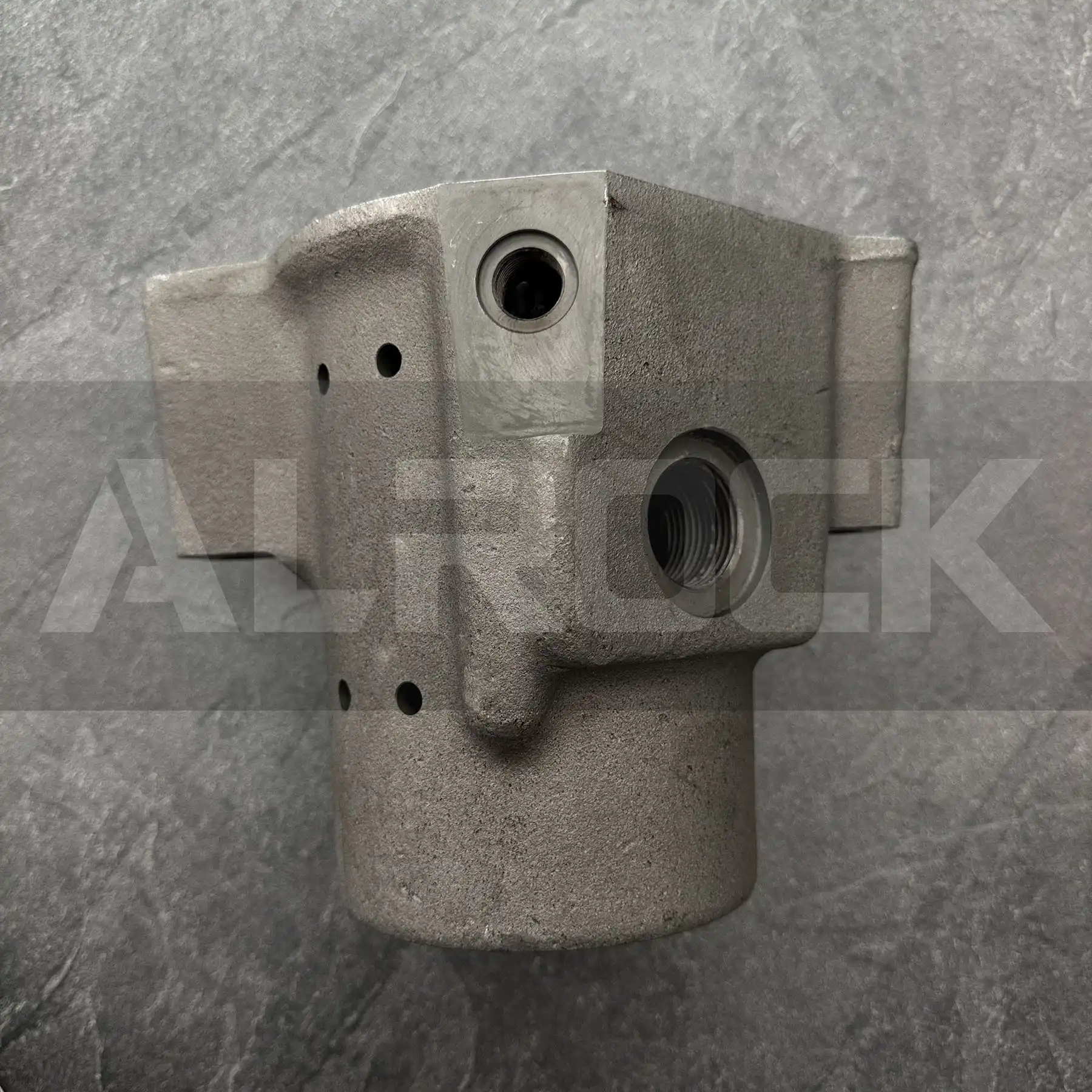

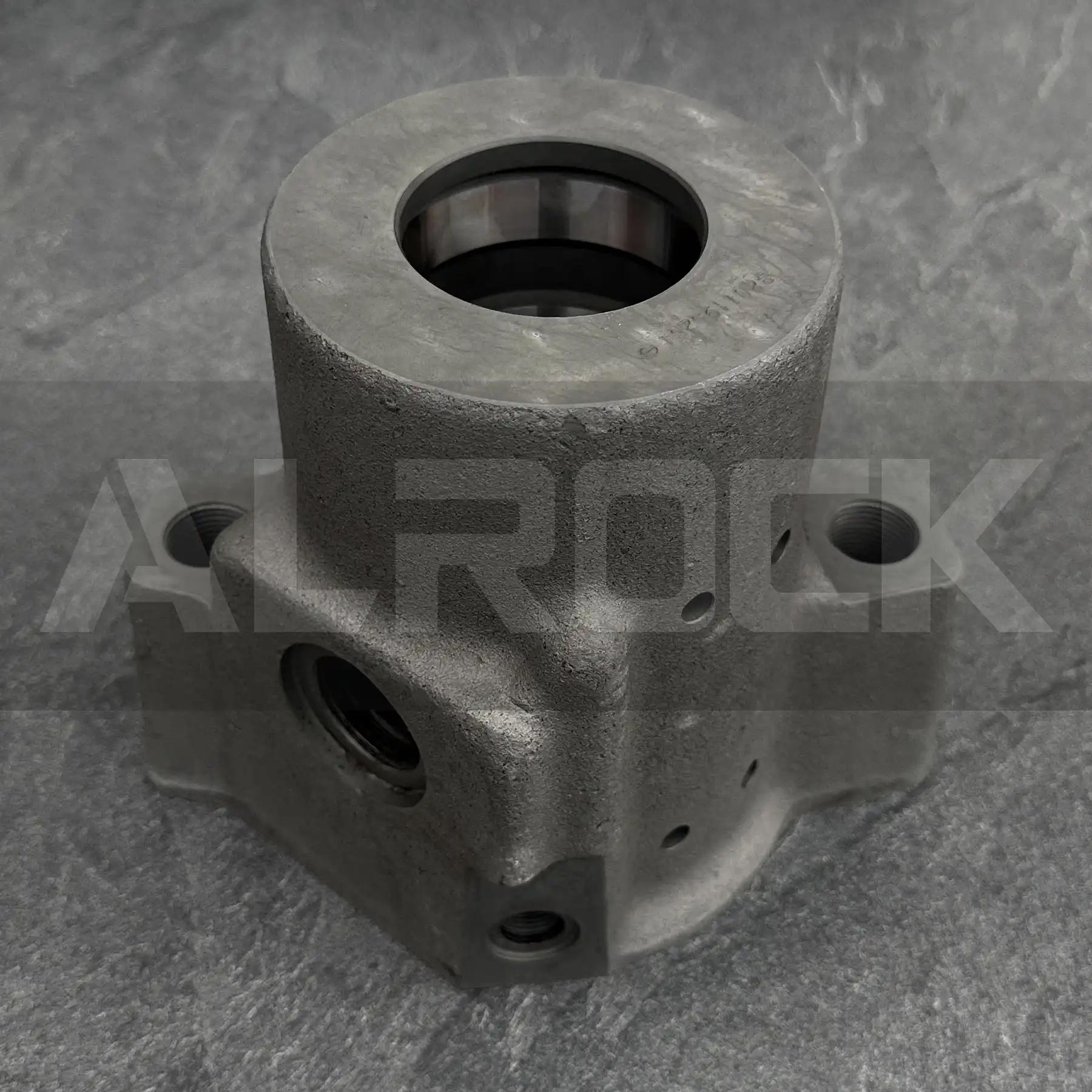

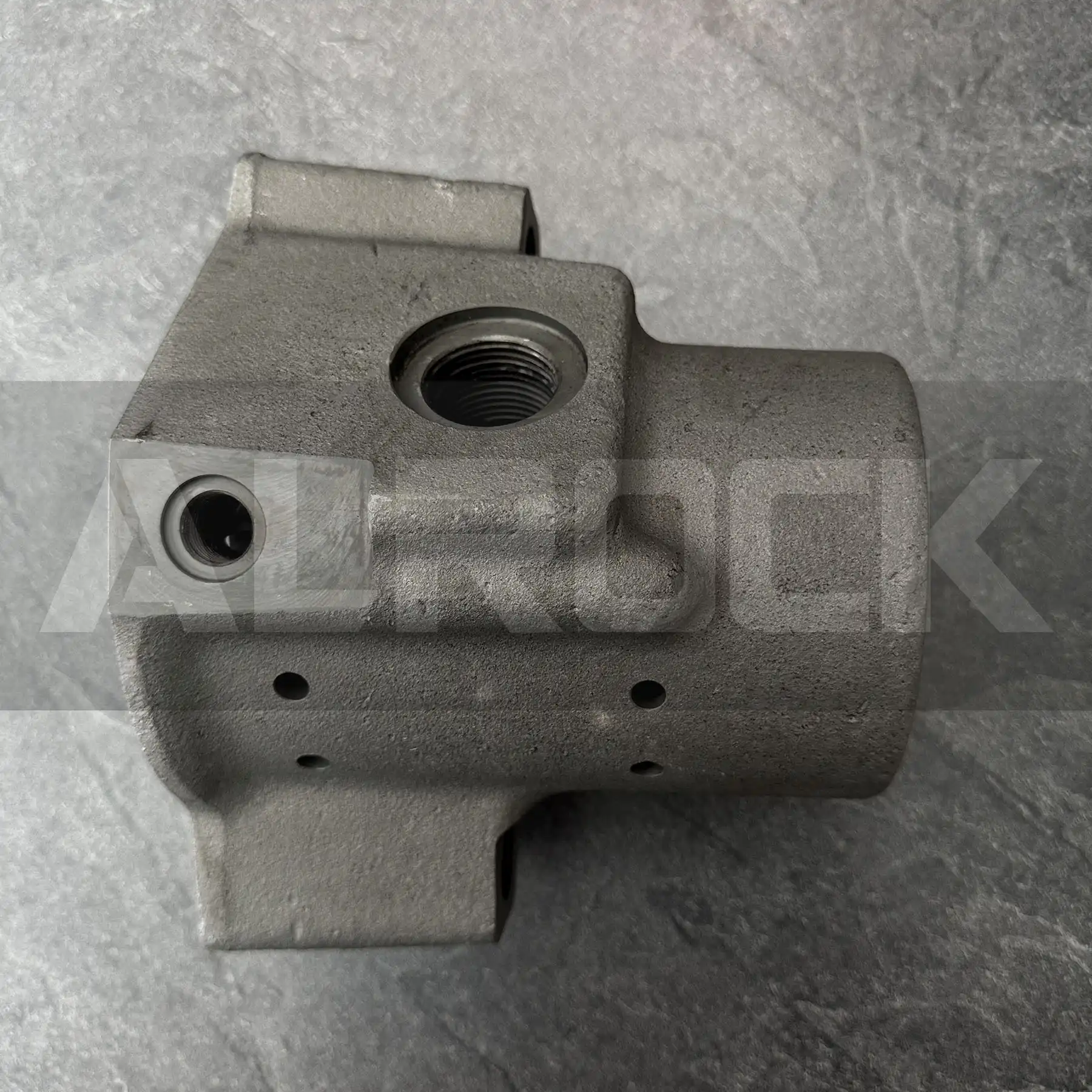

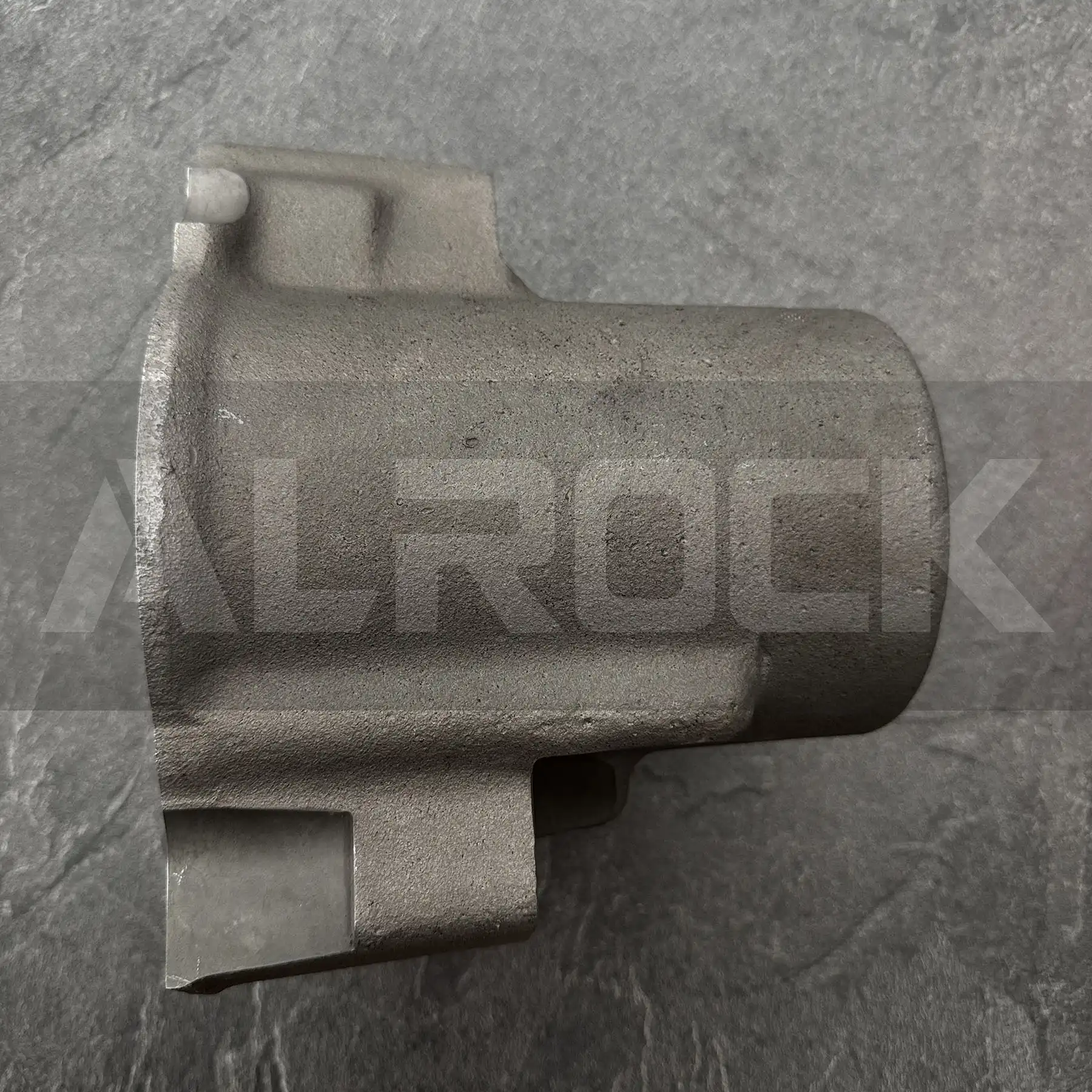

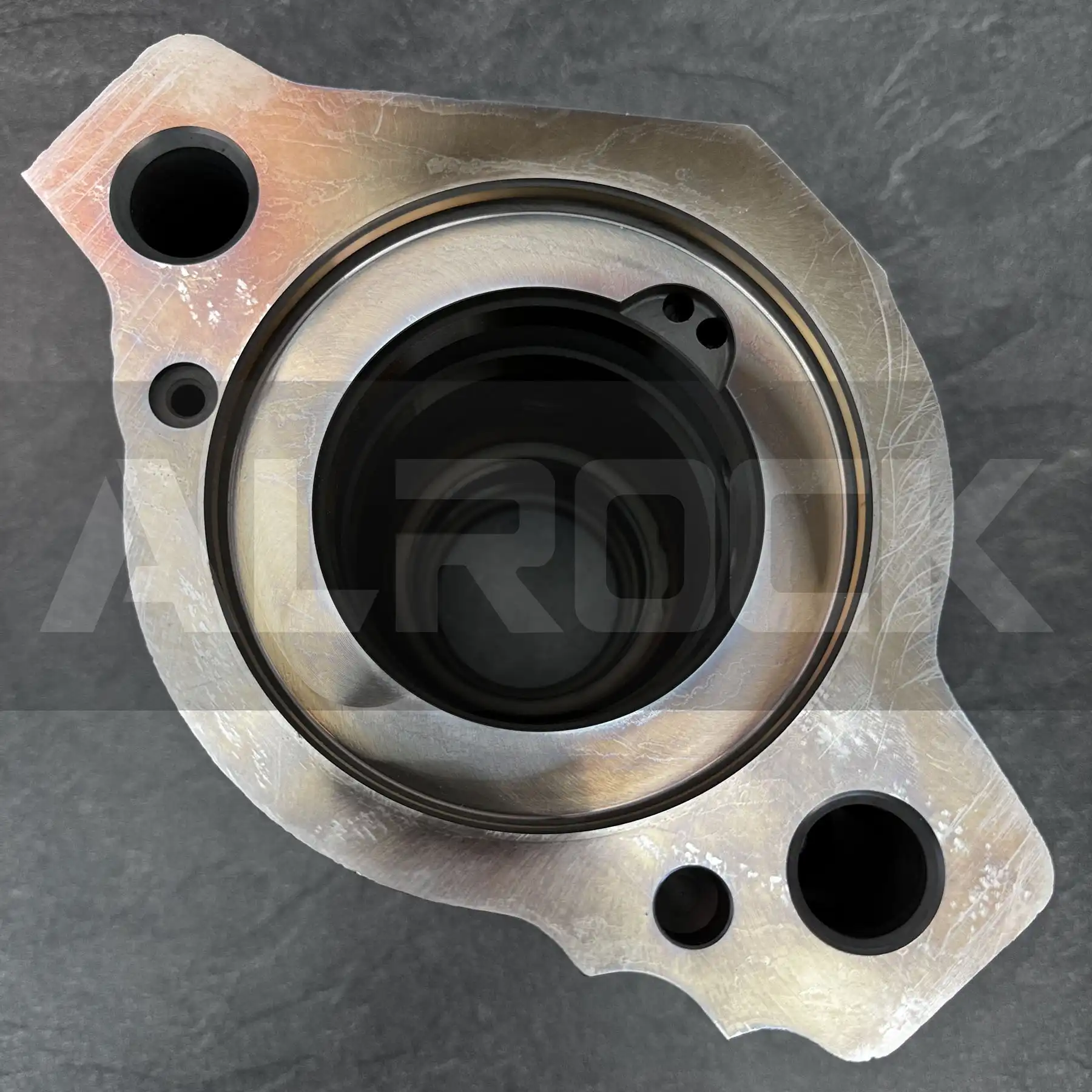

Wear-Resistant Drifter Front Part for Hydraulic Rock Drills This drifter front part is a critical component in hydraulic rock drill systems, designed to guide drill rods, protect internal bearings, and maintain hydraulic fluid sealing during high-impact drilling operations. Constructed from 42CrMo alloy steel—heat-treated for strength—and coated with WC-Co hard material, it addresses the core challenge of wear and tear in mining environments, where abrasive rock dust and continuous impact are common.
Key Performance Attributes
Material & Durability:
42CrMo alloy steel (quenched to 28-32 HRC core hardness) offers exceptional tensile strength (1,080 MPa, GB/T 3077) and impact resistance, withstanding 1,500+ kN impact forces typical in medium-hard rock drilling. The 0.15mm WC-Co coating (ASTM B777) provides 60 HRC surface hardness, reducing drill guide abrasion by 60% compared to uncoated parts—extending service life to 2,000+ drilling hours.
The sealed bearing housing (IP65 rating) prevents rock dust and moisture ingress, a leading cause of bearing failure in drifter assemblies. This design reduces maintenance frequency by 40% in underground mining applications.
Precision & Compatibility:
Manufactured to ISO 1179-1 standards, the drill rod interface ensures seamless compatibility with standard 38mm-76mm drill rods, eliminating misalignment issues that cause premature wear. The G1/2 hydraulic fluid port matches industry-standard hydraulic connections, enabling direct integration with existing drill systems without adapter parts.
Operational Reliability:
The bolt-on installation (4×M16 mounting holes, 100mm bolt circle diameter) simplifies replacement, reducing downtime to under 1 hour—critical for high-productivity mining operations. The -20°C to +80°C operating range ensures performance stability in cold underground tunnels and warm surface quarries, with no loss of sealing efficiency or material strength.
Applications
Primary use: Guide and protect components in hydraulic rock drill drifter assemblies (medium to heavy-duty mining drills).
Compatible equipment: Tunneling machines, quarry drills, and mineral exploration rigs requiring OEM-spec drifter front parts.
