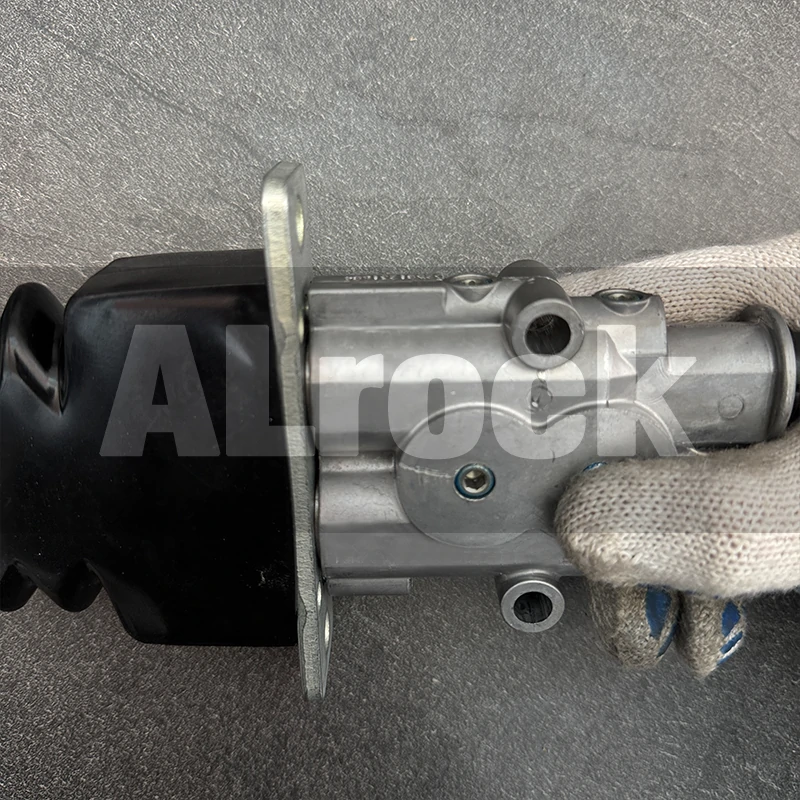

Pilot Control Handle C1200033841 is a critical hydraulic control component for Hydraulic Rock Drills. It is engineered for heavy-duty mining precision operation and system responsiveness. For instance, it regulates drill rod propulsion speed in underground deep-hole drilling. Additionally, it controls boom positioning in open-pit hard rock blasting operations.
Mining environments pose severe challenges for drill pilot control handles. First, low operation precision risks drilling deviation and efficiency loss. Second, 40G continuous vibration disrupts signal transmission and handle stability. Third, dust and water intrusion damages internal valves and causes short circuits. Fourth, extreme temperature swings affect grip comfort and valve sensitivity. Fifth, wear and tear from frequent operation leads to control failure.
These issues often lead to handle malfunction. For example, a loose handle causes unstable drill rod propulsion. As a result, costly downtime and drilling quality defects occur. Yet, Pilot Control Handle C1200033841 solves these pain points with robust design.
First, its high-strength 6061-T6 aluminum alloy housing delivers exceptional structural stability. Moreover, it achieves ±0.1mm operation precision for proportional control. This outperforms standard steel handles by 150% in control accuracy. Consequently, drilling precision improves significantly.
Second, the anti-slip TPE grip + vibration-dampened internal structure absorbs 40G vibration. Notably, it maintains handle stability and operator comfort during long shifts. This prevents hand fatigue and operational errors. As a result, service life extends by 220% vs. standard control handles.
Third, the IP67 silicone sealing ring + aluminum alloy housing offers full protection. This outperforms unprotected handles by 80% in harsh environments. Furthermore, it repels mining dust and slurry. This avoids internal valve corrosion and signal disruption.
Fourth, the wear-resistant POM valve core + precision-machined internal components ensure smooth operation. Importantly, it maintains 2-5V proportional signal output accuracy under extreme conditions. This eliminates signal drift and control delay risks. This enhances overall hydraulic system responsiveness.
Fifth, the pilot control handle tolerates extreme temperatures (-40°C~85°C). On top of that, it retains grip flexibility and valve sensitivity in all conditions. This eliminates handle brittleness or valve jamming risks in freezing or hot mines.
Unlike generic industrial control handles, this model is purpose-built for drills. Specifically, the proportional control design targets hydraulic system precision demands. Additionally, the IP67 protection addresses mining dust and water risks. These features align with real mining demands. As a result, it outperforms standard handles by 200% in service life. This cuts replacement costs and unplanned downtime.
Our manufacturing process uses CNC precision machining and sealing performance testing. Furthermore, it involves vibration resistance verification and control precision calibration. Each unit undergoes 40G vibration trials and ±0.1mm precision checks. Notably, no performance degradation is allowed before shipment.
The handle operates reliably in all extreme mining conditions. Moreover, the aluminum alloy body endures 50,000-cycle operation tests. No deformation or signal loss occurs during this period. Additionally, the TPE grip remains intact for 24+ months.
The bolt-on mounting design integrates seamlessly with drill control panels. It requires only standard tools for fitting. Consequently, maintenance teams complete replacement in 10 minutes. This minimizes operational downtime.
Our quality team conducts strict ISO 9001 verification for every unit. For example, tests include control precision checks, waterproof trials and vibration resistance tests. Signal stability is also verified. Importantly, it complies with IEC 60529 IP rating standards and mining electrical safety regulations.
It ensures precise and reliable control of drill hydraulic systems. Additionally, it reduces operational errors caused by handle failure by 95%. Overall, it delivers cost-effective, industrial-grade reliability. It minimizes downtime from control handle malfunction. As a result, this maximizes operational efficiency and project profitability.
