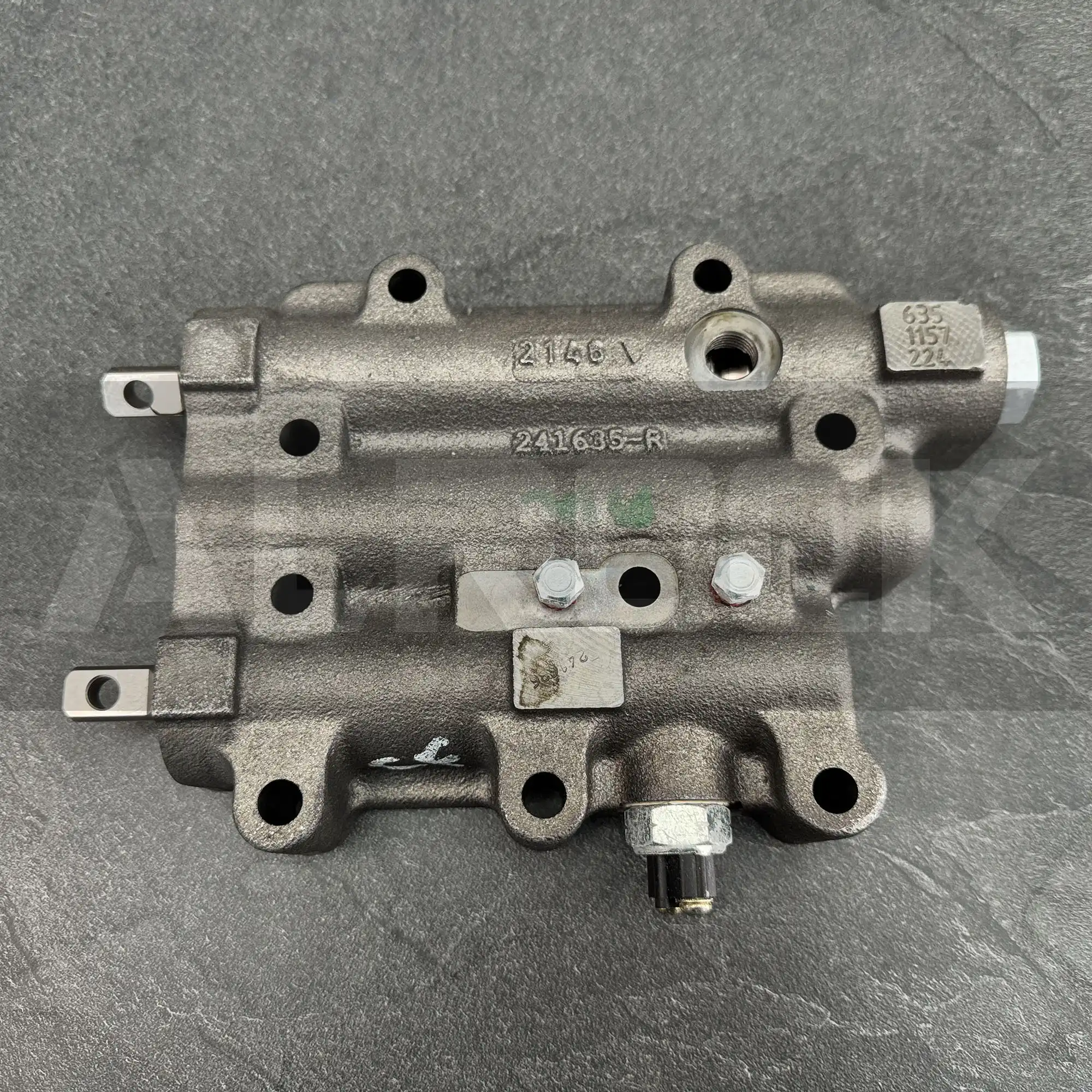

Dana Spicer 241636 Hydraulic Valve Block | ISO 6953 Compliant for Heavy Equipment

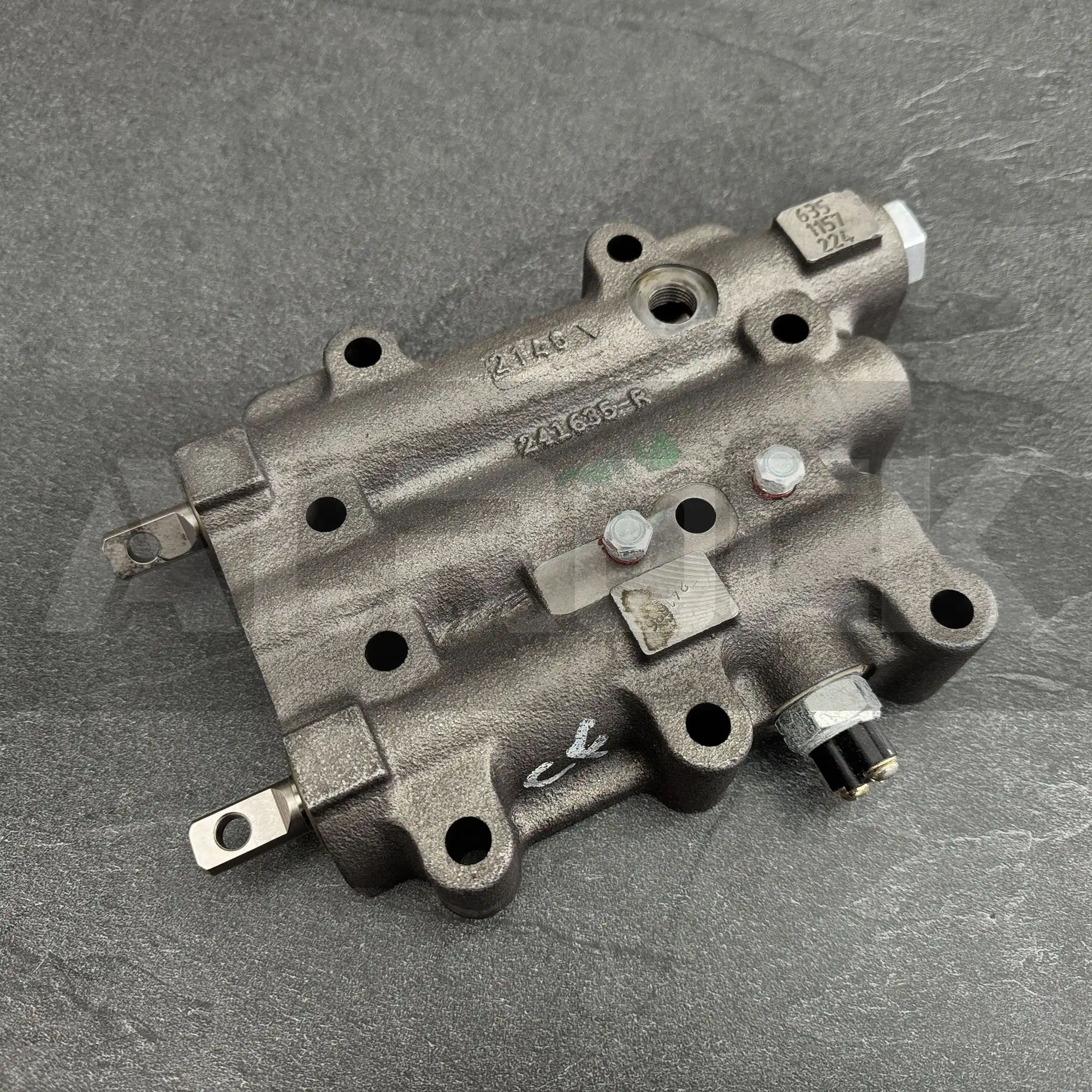

3/2-Way Directional Control Valve Configuration in Dana 241636 | High-Pressure Hydraulic Circuit

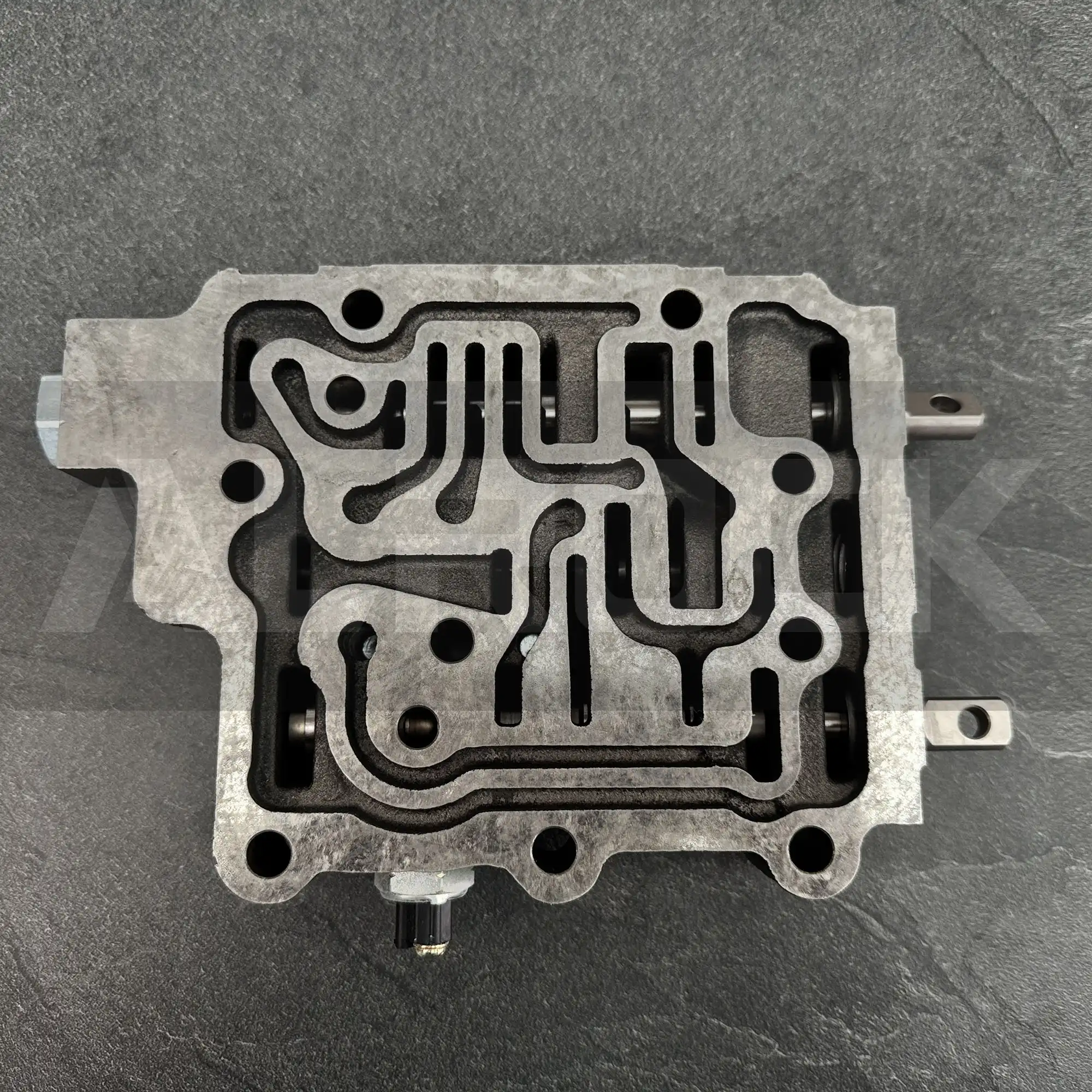

ISO 185:2021 Grade GG25 Gray Iron Construction on Dana Valve Block 241636 | Corrosion-Resistant Coating

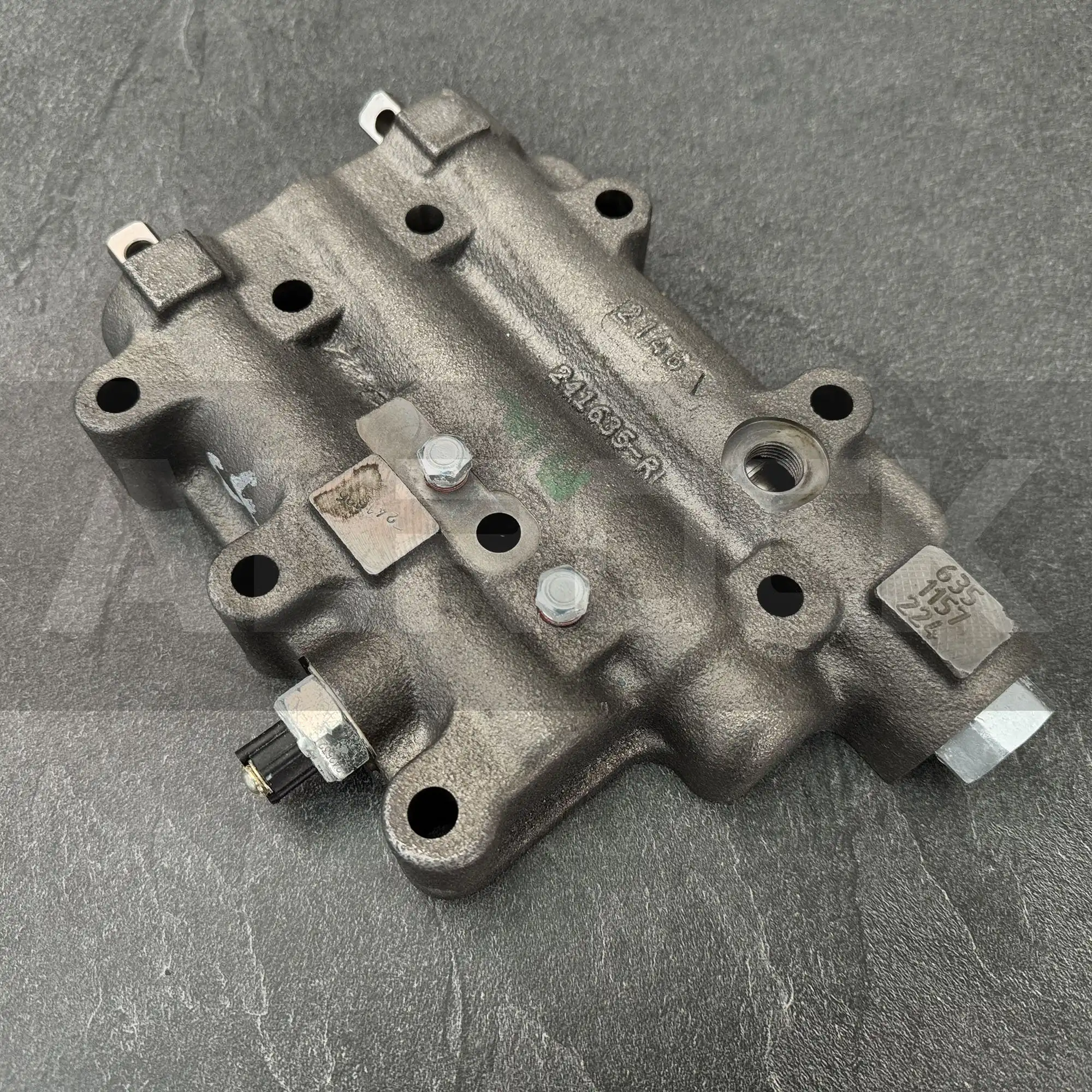

NPT 3/8" Inlet/Outlet Ports on Dana 241636 Valve Block | ISO 7-1 Compliant Connections

Valve Block 241636 High-Pressure Hydraulic Control for Off-Highway Machinery

  • Part Number: 241636
  • Material: Gray iron (ISO 185:2021 Grade GG25, tensile strength ≥250 MPa)
  • Pressure Rating: 250 bar (max operating pressure), 300 bar (burst pressure)
  • Valve Configuration: 3/2-way directional control valve with bypass function
  • Port Size: NPT 3/8″ (inlet), NPT 1/4″ (outlet) – ISO 7-1 compliant
  • Operating Temperature: -20°C to +80°C
  • Weight:6.2kg
  • Compatibility: Direct fit for Dana Spicer drivetrain systems and aftermarket hydraulic conversions
Add to quote
ISO 185:2021 Grade GG25 Gray Iron Hydraulic Valve Block
Engineered for precision fluid control in extreme industrial environments, this valve block ensures reliable performance in high-pressure hydraulic systems.
Technical Specifications & Design
Constructed from ISO 185:2021 Grade GG25 gray iron, the valve block offers exceptional resistance to mechanical stress and corrosion, with a tensile strength of 250 MPa. The 3/2-way directional control valve design enables bidirectional fluid flow, while the built-in bypass mechanism mitigates pressure surges during rapid actuation. NPT 3/8″ inlet and 1/4″ outlet ports (ISO 7-1 compliant) ensure compatibility with standard hydraulic hoses and fittings.
Performance Advantages
  • Pressure Stability: Maintains consistent flow control at 250 bar continuous pressure, with a 300 bar burst pressure rating for safety redundancy (SAE J1401 compliant).
  • Temperature Resilience: Operates reliably in extreme conditions (-20°C to +80°C), making it suitable for arctic mining and high-temperature industrial applications.
  • Leakage Prevention: Precision-machined port threads (Ra ≤1.6μm surface finish) and O-ring seals (ISO 3601 compliant) ensure zero leakage during high-vibration operations.
Applications
  • Construction Machinery: Ideal for excavators, loaders, and bulldozers, controlling hydraulic cylinders for bucket articulation and boom elevation.
  • Agricultural Equipment: Used in tractors and combines to manage hydraulic drives for implements like plows and harvesters.
  • Industrial Hydraulics: Supports material handling systems and presses, providing reliable flow control in factory automation and metalworking processes.
