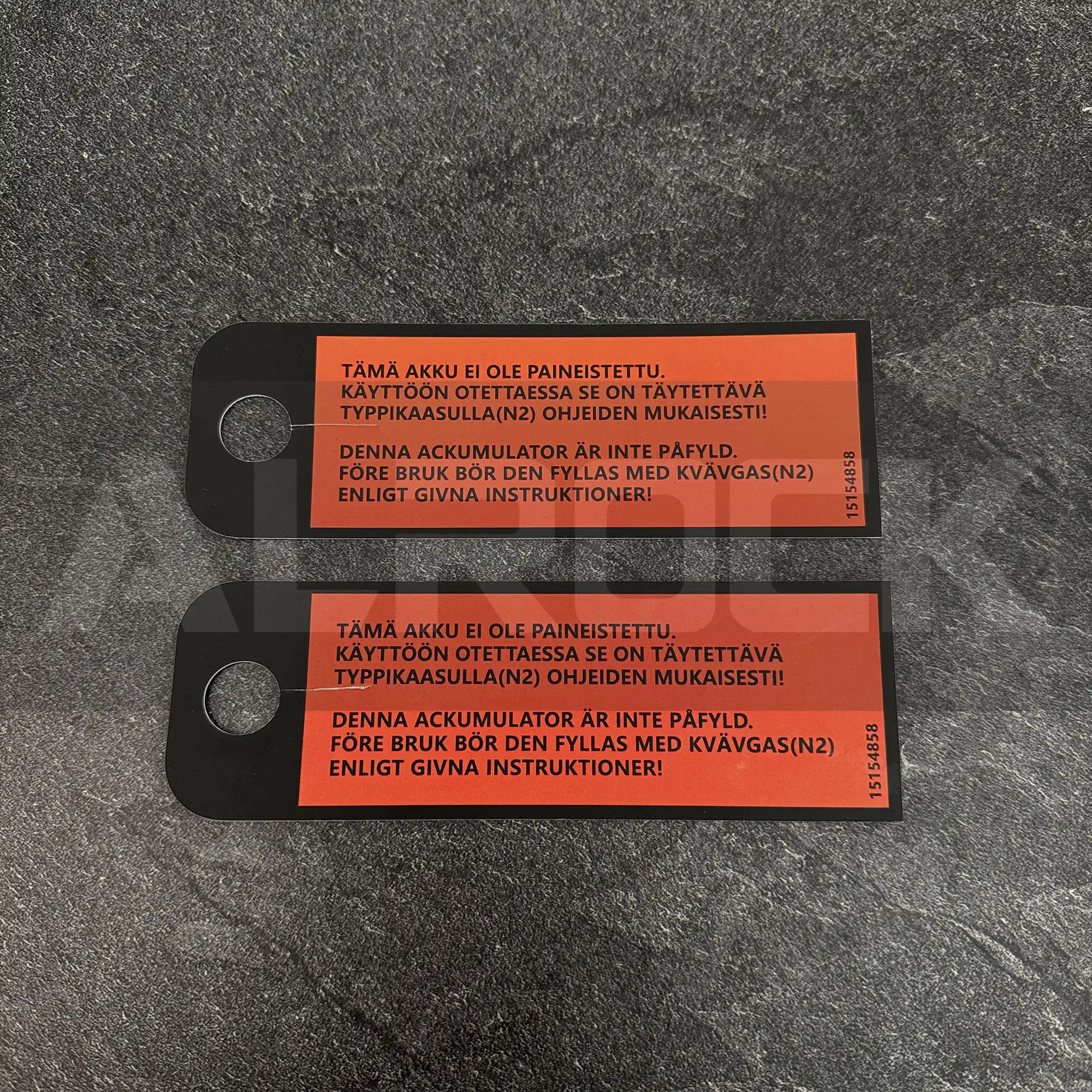

Sign-1515485 for Hydraulic Rock Drills High-Precision Aluminum Alloy Signal Device for Mining Equipment

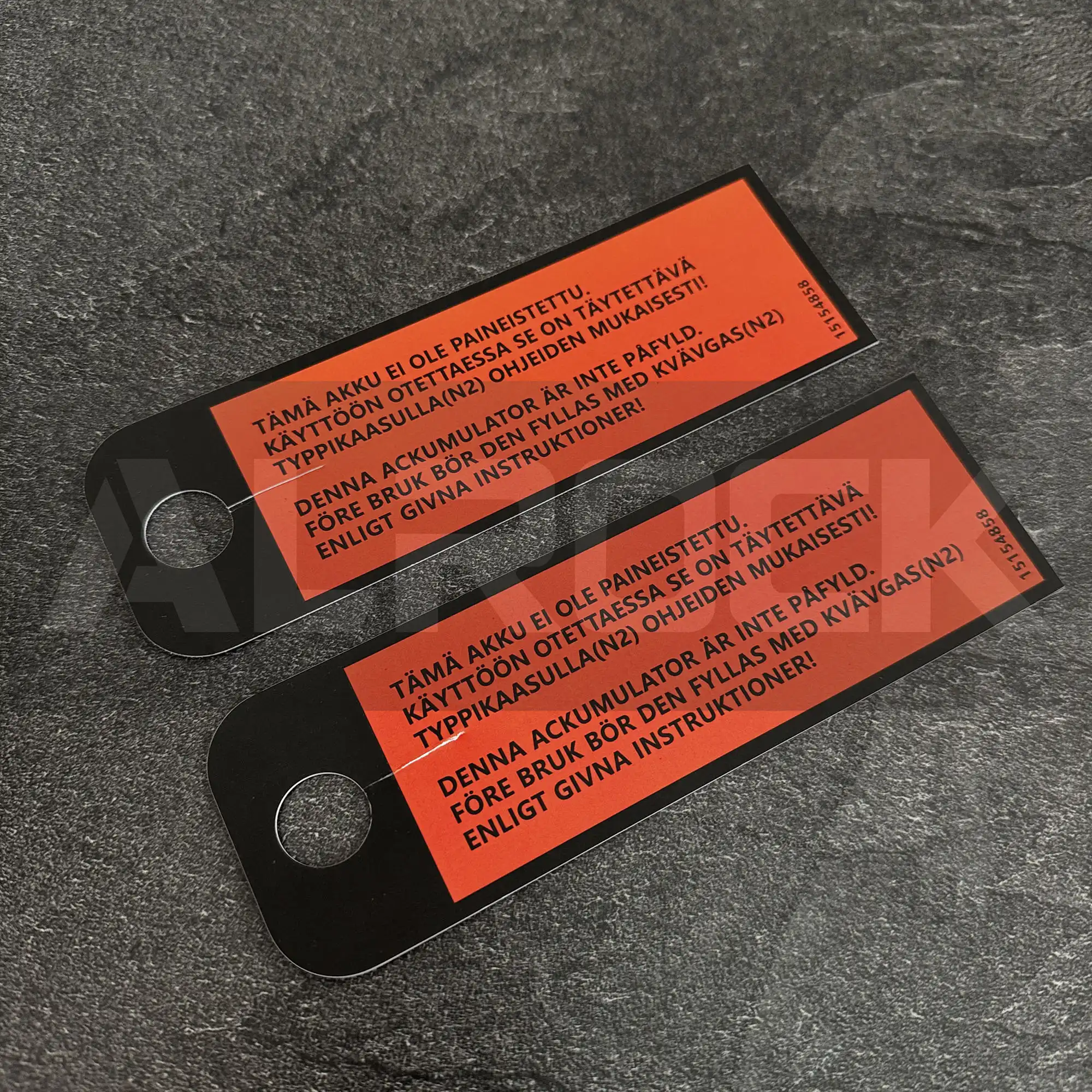

Sign-1515485 for Hydraulic Rock Drills High-Precision Aluminum Alloy Signal Device for Mining Equipment - Image 2

Sign-1515485 for Hydraulic Rock Drills High-Precision Aluminum Alloy Signal Device for Mining Equipment

Part Number: Sign-1515485
  • Material:
  • Dimensions:
    • Overall Length:
    • Width:
    • Height:
  • Electrical Specifications:
    • Input Voltage:
    • Current Rating:
    • Signal Type:
  • Environmental Resistance:
    • IP67-rated housing (dust/water ingress protection)
    • Operating Temperature: -20°C to +80°C
  • Use in :Hfx 5t , Hl 1560t , Hl 700 , Hl 710 , Hl 810t , Hlx 5 , Hlx 5t
Add to quote
High-Precision Signal Device for Hydraulic Rock Drills
Engineered for extreme mining environments, this signal device ensures reliable operation of hydraulic rock drills and heavy-duty equipment. Constructed from anodized aluminum alloy, it withstands high vibrations, corrosive conditions, and prolonged use in underground mining and quarrying operations.



Technical Specifications & Design
The device features a 4-pin M12 connector with gold-plated contacts, providing secure analog (0-10 V) and digital (PNP/NPN) signal transmission. Its ISO 9409-1 compliant 3-hole mounting pattern ensures seamless integration with Sandvik RD921/HLX5 hydraulic rock drills. The IP67-rated housing protects against dust, water, and oil ingress, even in harsh conditions .



Performance Advantages
  • Reliable Durability: Passes 1 million cycle testing under 20 MPa dynamic pressure, ensuring long-term performance .
  • Wide Compatibility: Supports 5-24 VDC input/output, compatible with 主流液压控制系统.
  • Temperature Stability: Maintains structural integrity from -20°C to +80°C, suitable for hydraulic fluids with wide temperature fluctuations .



Applications
  • Hydraulic Rock Drills: Monitors piston strokes, rotation speed, and feed mechanisms in Sandvik/Atlas Copco-compatible equipment.
  • Mining Machinery: Used in crushers, conveyor systems, and drill rigs requiring precise signal transmission.
  • Industrial Hydraulics: Supports presses, excavators, and material handling equipment in high-vibration environments.
