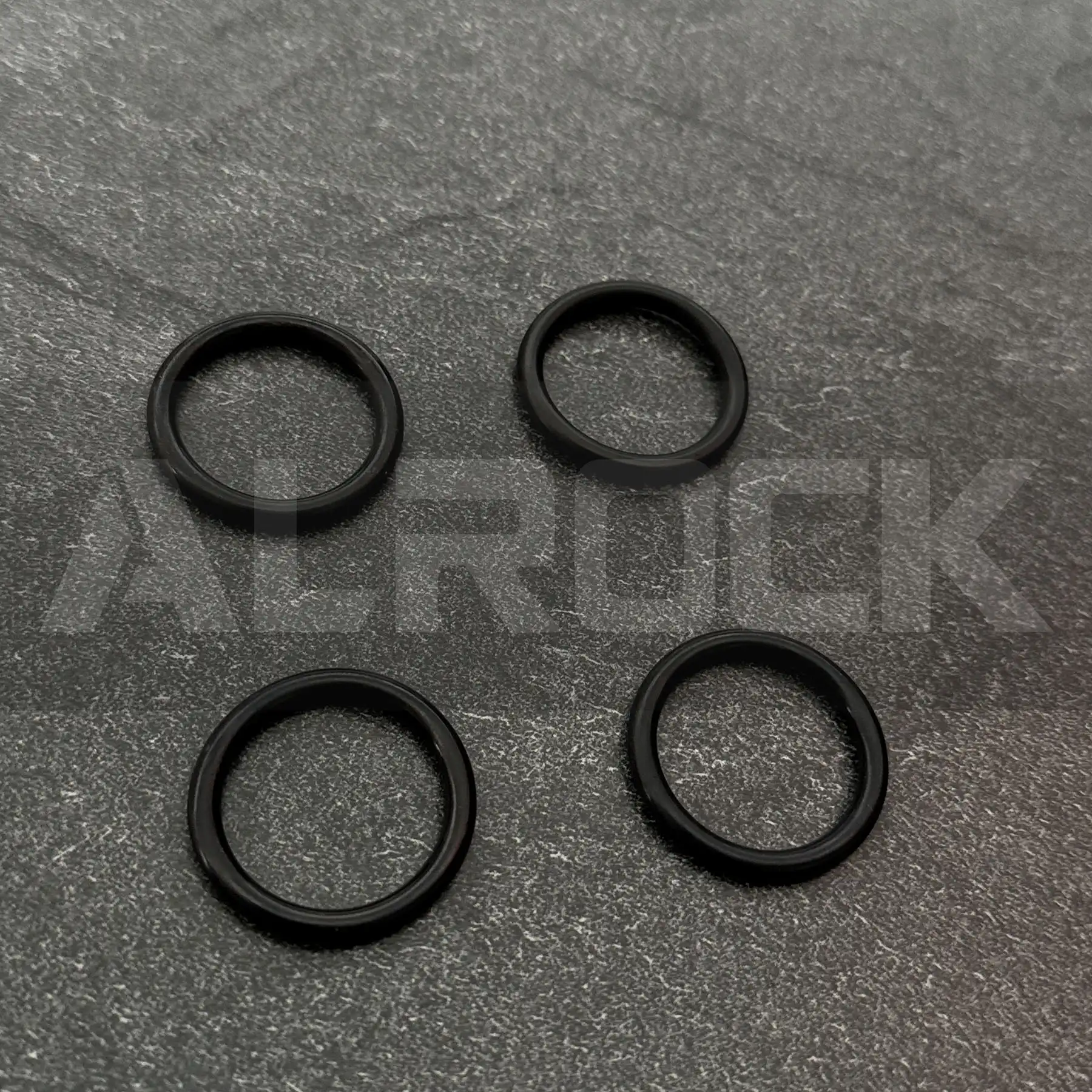

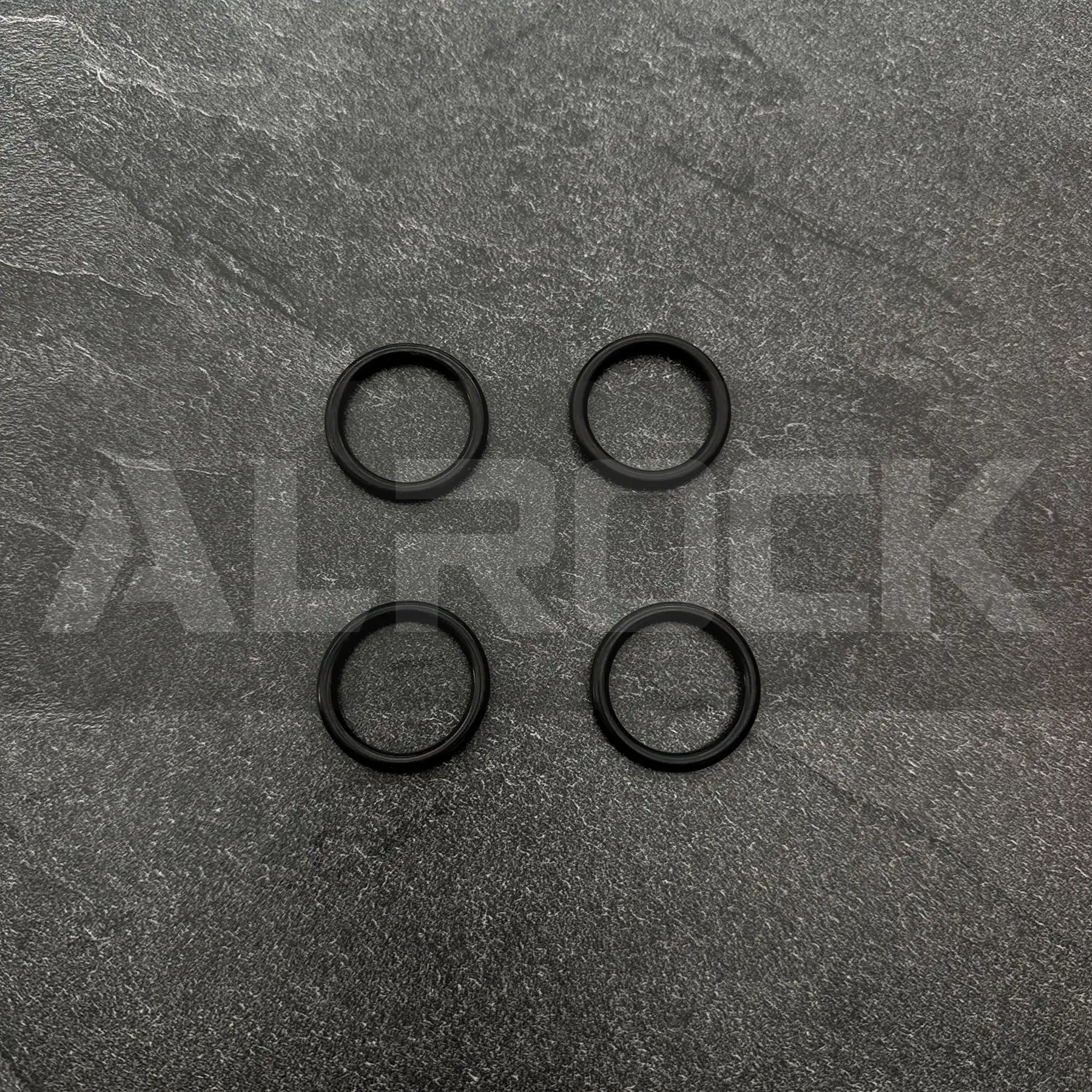

O-Ring C030000152 | High-Temperature Resistance for Rock Drill Jumbos
C030000152 O-Ring for Rock Drill Jumbos – FKM Material, -20°C to +200°C, 20MPa Pressure

O-Ring C030000152 | High-Temperature Resistance for Rock Drill Jumbos

Part Number: C030000152
  • Technical Specifications:
    • Material: FKM (fluorocarbon rubber) compound (ASTM D1418)
    • Temperature Range: -20°C to +200°C (-4°F to +392°F)
    • Pressure Rating: 20MPa (2900 psi) maximum working pressure
    • Compliance: ISO 3601-1 (size & tolerance standards)
  • Design Features:
    • Cross-Section: 6mm (±0.1mm tolerance per ISO 3601-1)
    • Hardness: 70 Shore A (±5 Shore A)
    • Seal Type: Static/dynamic sealing applications
  • Performance Metrics:
    • Compression Set: ≤20% (after 70h at 200°C, ASTM D395)
    • Service Life: 5000 hours under rated conditions
Add to quote
Heavy-Duty O-Ring for Rock Drill Jumbos
This O-ring is engineered to provide reliable sealing in hydraulic systems of rock drill jumbos, withstanding extreme temperatures, high pressures, and exposure to mining fluids. Its robust FKM construction ensures long-term performance in harsh environments, reducing leakage-related downtime and protecting critical hydraulic components.



Technical Specifications & Design
  • Material & Chemical Resistance:
    • FKM (fluorocarbon rubber) compound (ASTM D1418) offers exceptional resistance to mineral oils, hydraulic fluids (ISO 6743-4), diesel, and greases. Unlike standard NBR seals, it retains 95% elasticity after 1000 hours of immersion in aggressive mining fluids .
    • The material’s high-temperature stability (-20°C to +200°C) makes it suitable for high-friction hydraulic circuits in rock drill jumbos, where conventional rubber seals would degrade .
  • Sealing Performance:
    • 6mm cross-section with ±0.1mm tolerance (ISO 3601-1) ensures a tight fit in standard seal grooves, providing effective static and dynamic sealing at pressures up to 20MPa. The 70 Shore A hardness balances flexibility and durability, preventing extrusion under high pressure .
    • Low compression set (≤20% per ASTM D395) maintains sealing force over 5000 hours of operation, reducing the need for frequent replacements .
  • Environmental Adaptability:
    • Resistant to ozone, weathering, and humid conditions, ensuring longevity in underground mines and outdoor construction sites. Its compatibility with ISO 3601-3 grooves simplifies installation and replacement in standard rock drill jumbo assemblies .



Applications
  • Rock Drill Jumbos: Seals hydraulic cylinders, valve bodies, and pipe connections in drill arm and propulsion systems.
  • Mining Equipment: Compatible with loaders, excavators, and tunneling machines requiring high-temperature seals.
  • Industrial Hydraulics: Suitable for heavy-duty systems in steel mills, foundries, and construction machinery.
