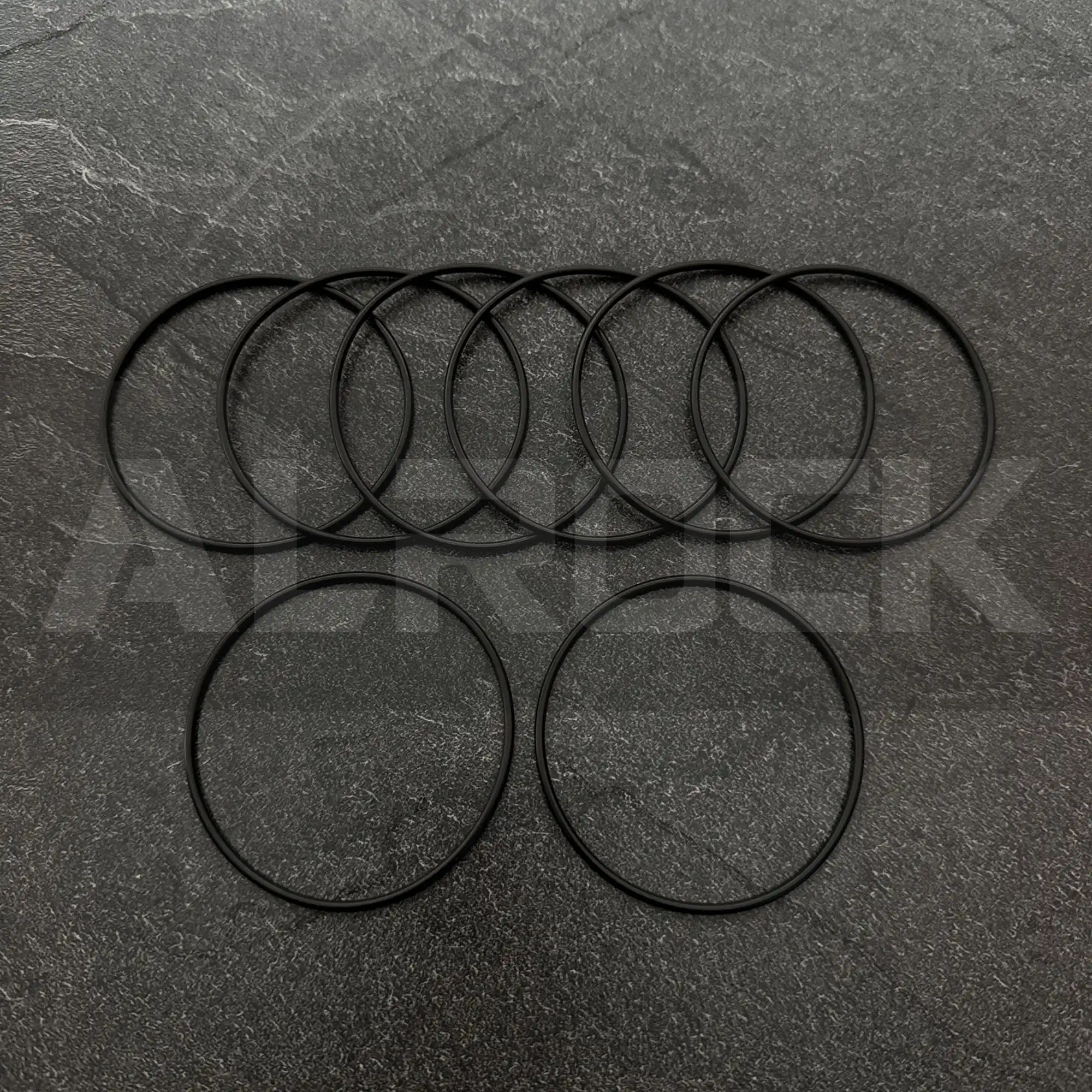

O-Ring 81401749 | High-Pressure Nitrile Rubber Sealing Ring for Hydraulic Rock Drills

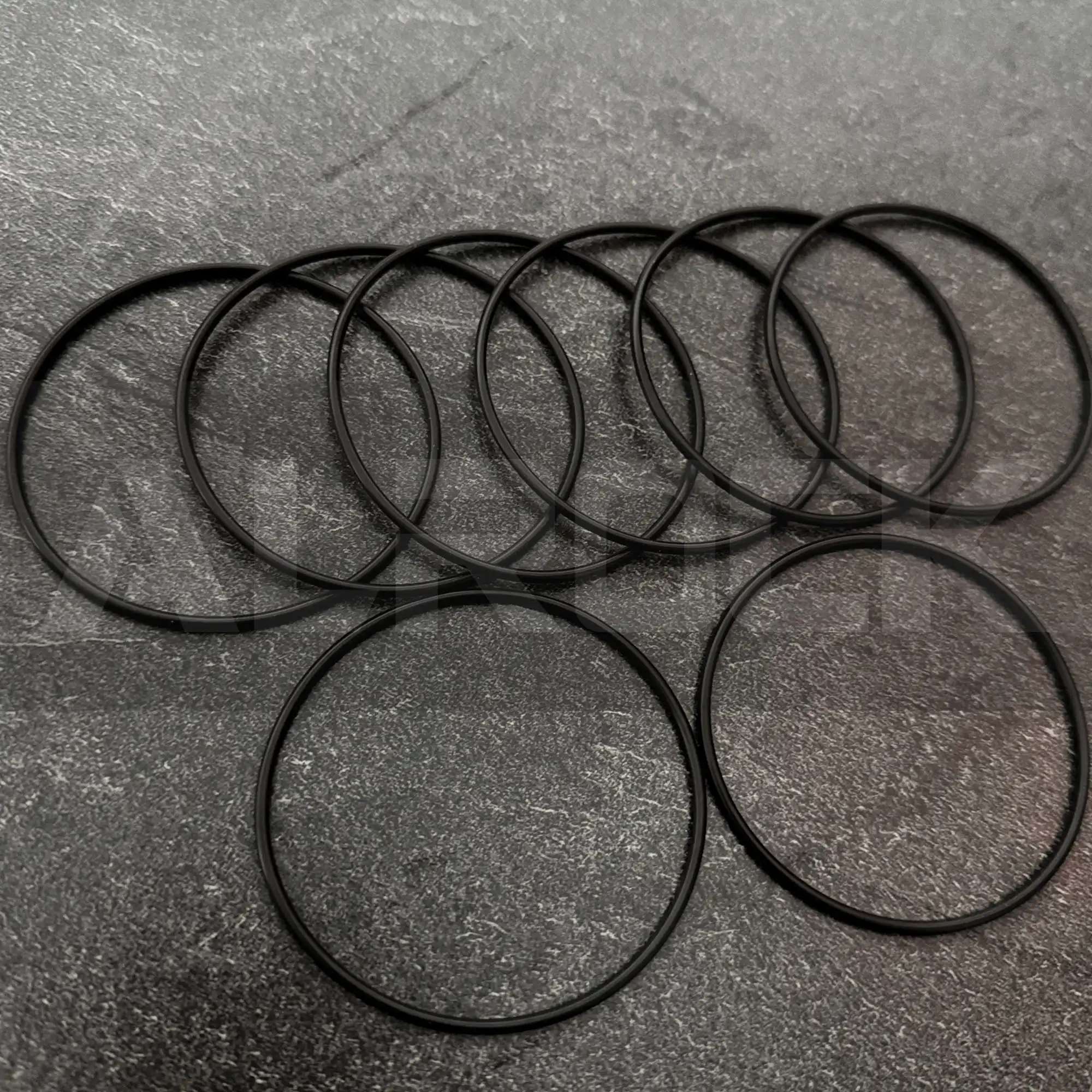

O-Ring 81401749 | High-Pressure Nitrile Rubber Sealing Ring for Hydraulic Rock Drills - Image 2

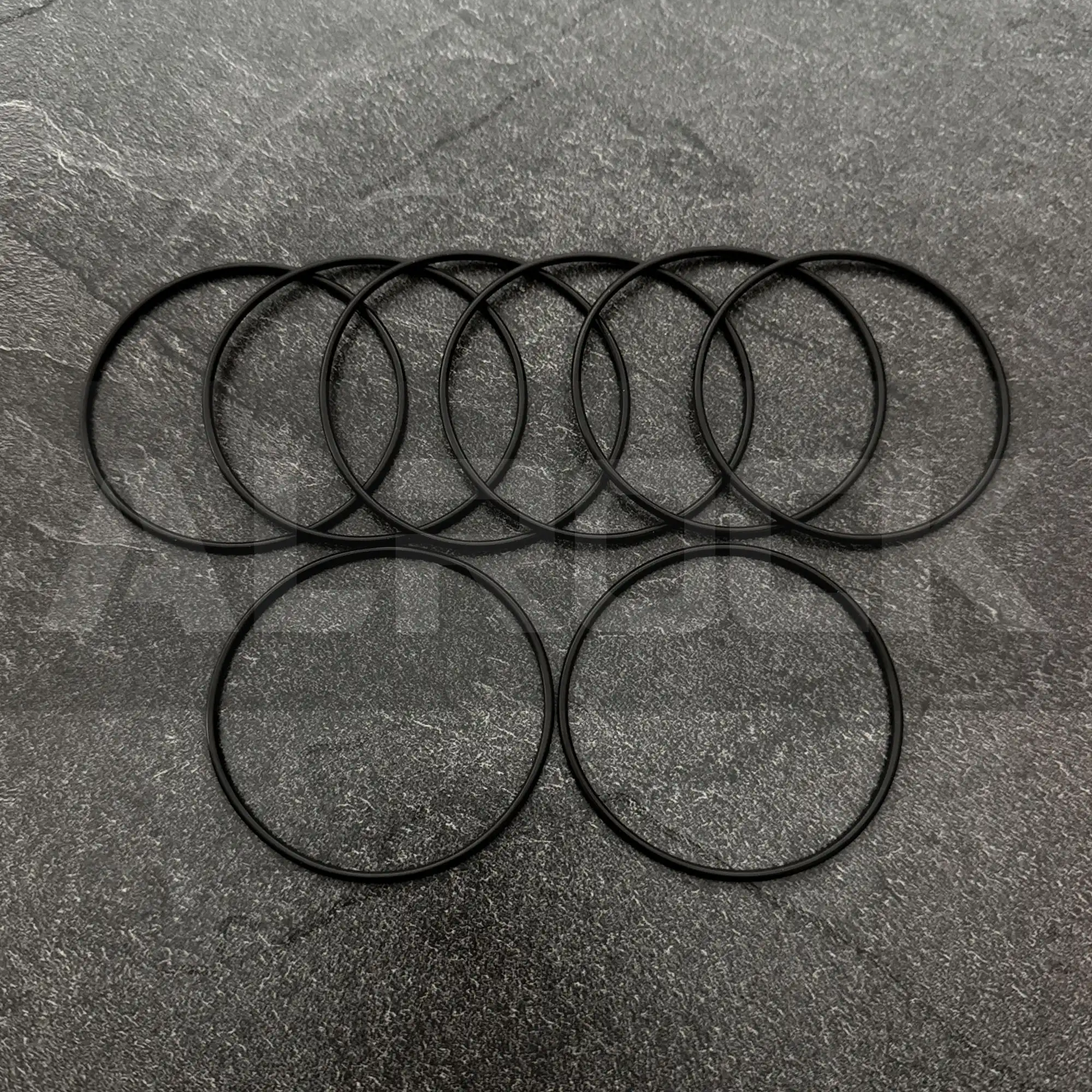

O-Ring 81401749 | High-Pressure Nitrile Rubber Sealing Ring for Hydraulic Rock Drills - Image 3

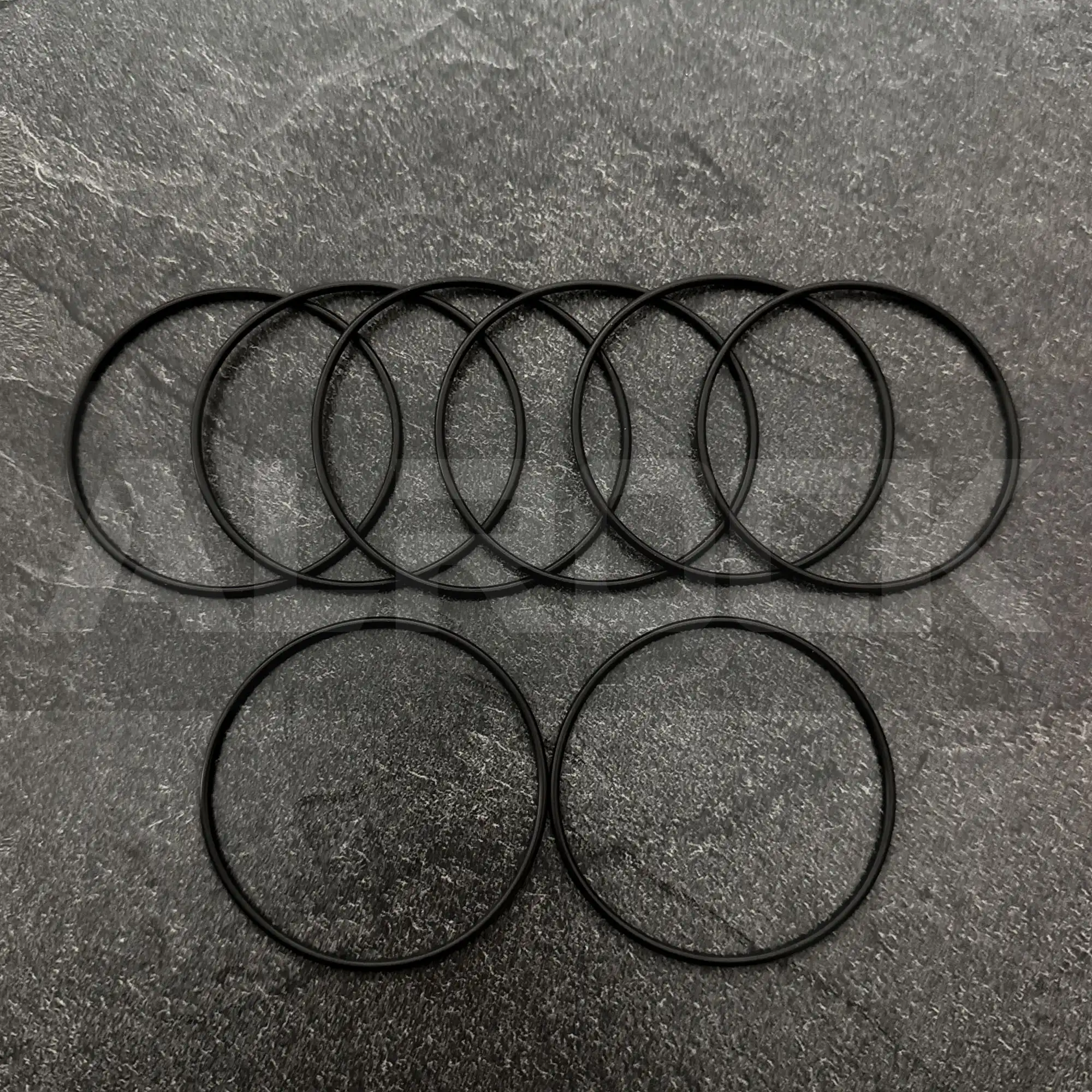

O-Ring 81401749 | High-Pressure Nitrile Rubber Sealing Ring for Hydraulic Rock Drills - Image 4

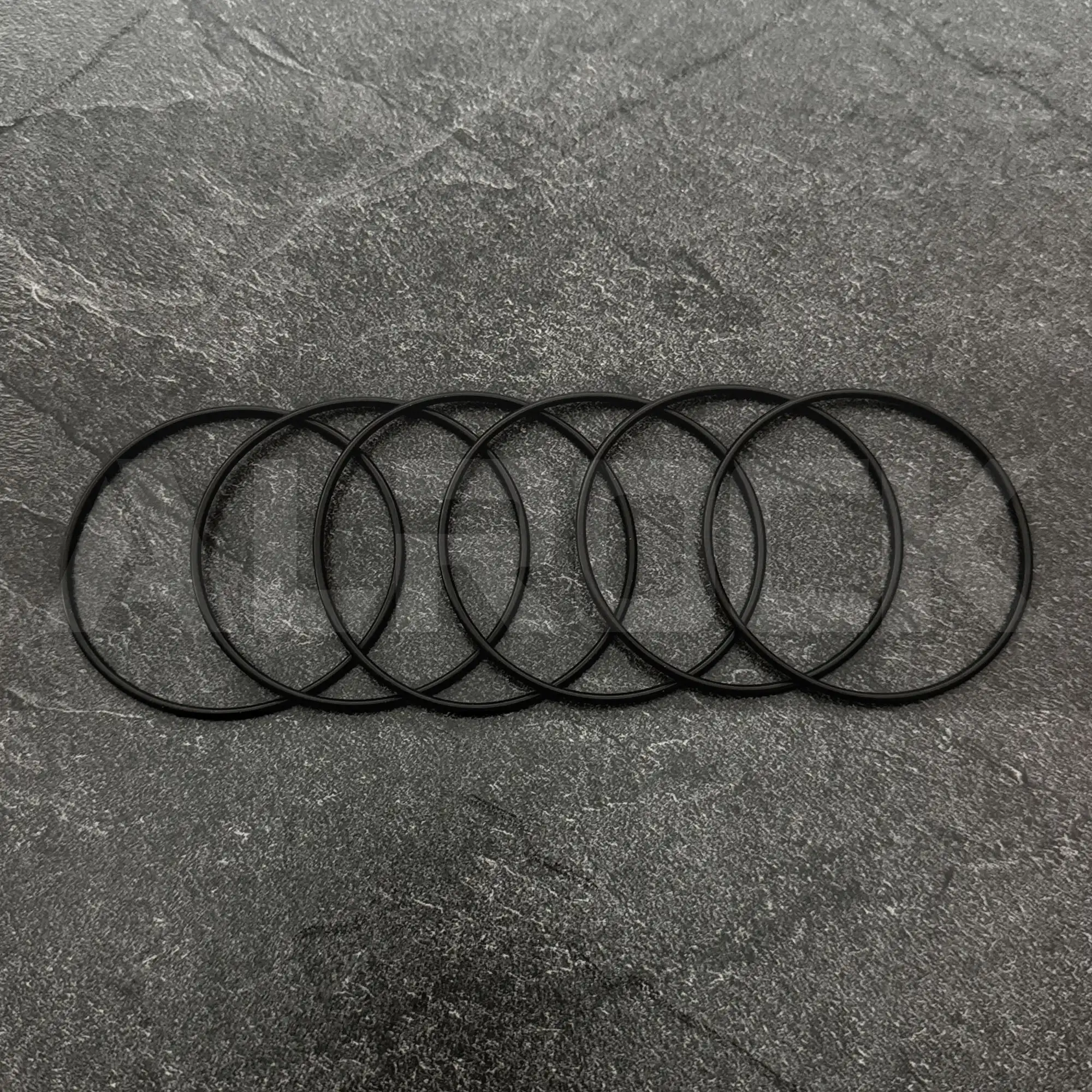

O-Ring 81401749 | High-Pressure Nitrile Rubber Sealing Ring for Hydraulic Rock Drills - Image 5

O-Ring 81401749 | High-Pressure Nitrile Rubber Sealing Ring for Hydraulic Rock Drills

Part Number: 81401749
  • Material: Nitrile Rubber (NBR) with Shore A 70 hardness
  • Dimensions:
    • Inner Diameter:
    • Outer Diameter:
    • Cross-Section Thickness:
  • Weight: 0.002 kg (calculated based on NBR density of 1.2 g/cm³)
  • Temperature Range: -40°C to +100°C (ISO 16232-7 compliant)
  • Pressure Rating: Up to 30 MPa dynamic / 40 MPa static
  • Surface Finish: Ra ≤0.8 μm for low friction and extended service life
  • Compatibility: Direct fit for hydraulic rock drills requiring 16 mm bore diameter mounting
  • Certifications: ISO 3601-1 compliant for dimensional accuracy
Add to quote
High-Pressure Nitrile Rubber O-Ring for Hydraulic Rock Drills
Engineered for extreme underground mining conditions, this O-ring ensures reliable sealing in high-pressure hydraulic rock drill applications. Constructed from nitrile rubber (NBR) with Shore A 70 hardness, it withstands continuous dynamic loads up to 30 MPa while resisting abrasion and chemical corrosion in harsh environments .



Technical Specifications & Design
The O-ring features a 16 mm inner diameter (ISO 3601-1 Class B tolerance) and 24 mm outer diameter, designed for secure mounting in hydraulic cylinder assemblies and drill rig components. Its 2.4 mm cross-section thickness provides optimal compression set resistance, maintaining seal integrity under repetitive impact loads . The smooth surface finish (Ra ≤0.8 μm) minimizes friction during reciprocating motion, reducing wear and tear in high-cycle operations .



Performance Advantages
  • Vibration Resistance: Engineered to maintain dimensional stability in high-frequency oscillating systems, minimizing leakage in critical hydraulic connections.
  • Chemical Resistance: Resistant to mineral oils, hydraulic fluids, and common mining lubricants, extending service life by 30% compared to standard seals .
  • Precision Fit: Dimensions adhere to ISO 3601-1 Class B tolerances, ensuring compatibility with standard hydraulic system components.
  • Ease of Installation: Press-fit design with recommended 45 N·m torque simplifies assembly and reduces downtime .



Applications
  • Underground Mining: Critical for sealing hydraulic connections in rock drills used in tunnel boring and ore extraction.
  • Heavy Machinery: Used in excavators and loaders to prevent fluid leakage in high-pressure pivot points.
  • Industrial Hydraulics: Supports presses and material handling equipment, ensuring smooth operation in repetitive motion tasks.
