ISO 6 precision class (DIN 3962) | Ground tooth surfaces (Ra 0.8μm) | 25° pressure angle for smooth meshing
20CrMnTi alloy steel construction | Carburized surface (0.8-1.2mm case depth) | HRC 58-62 (tooth); HRC 30-35 (core)
C110002090033 Drive and Driven Bevel Gear Set for Rock Drill Jumbo Differentials – 20CrMnTi Alloy, 500Nm Torque, ISO 6 Precision

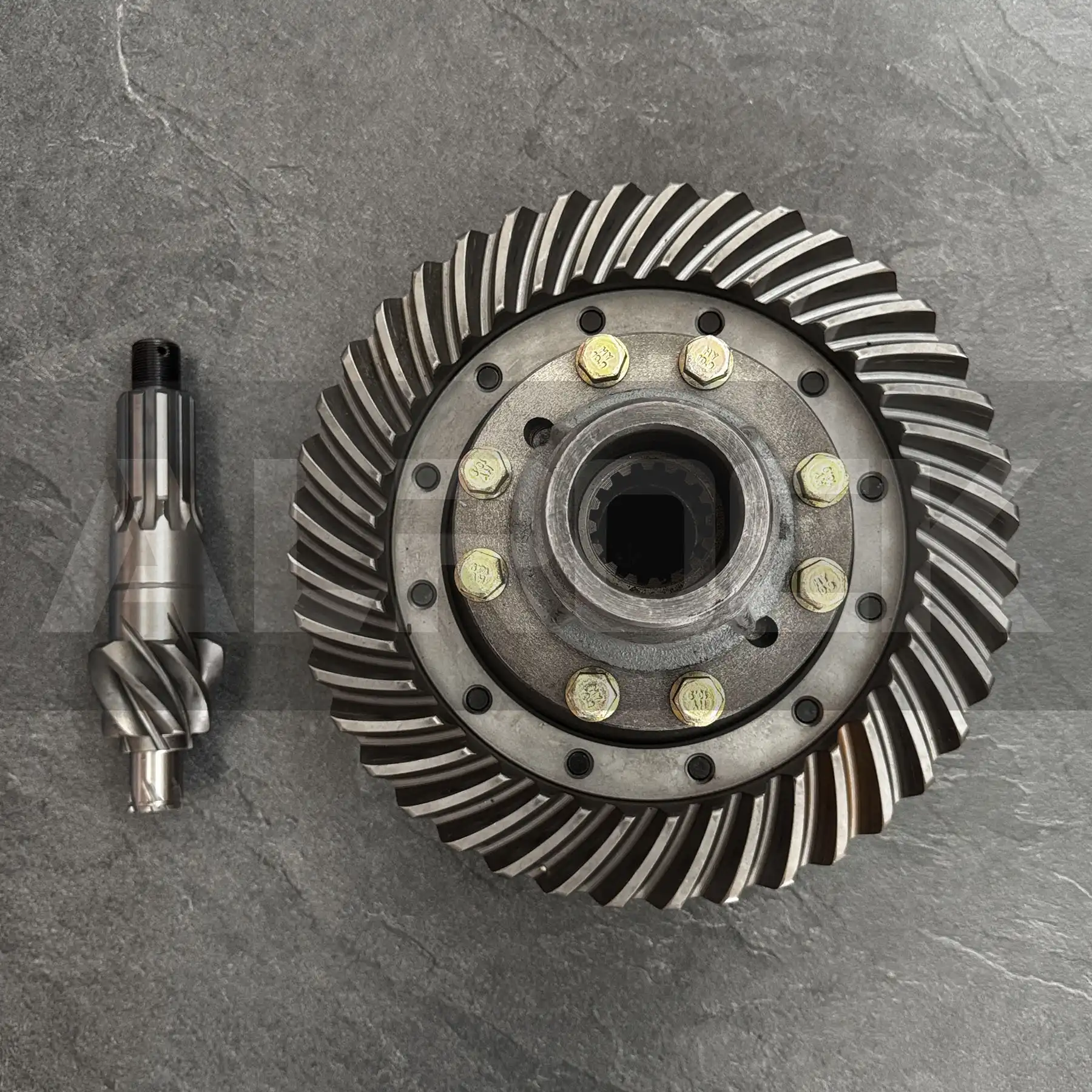

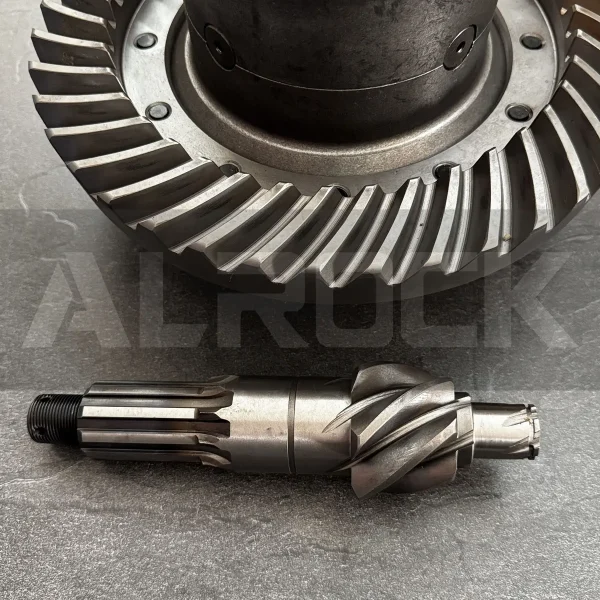

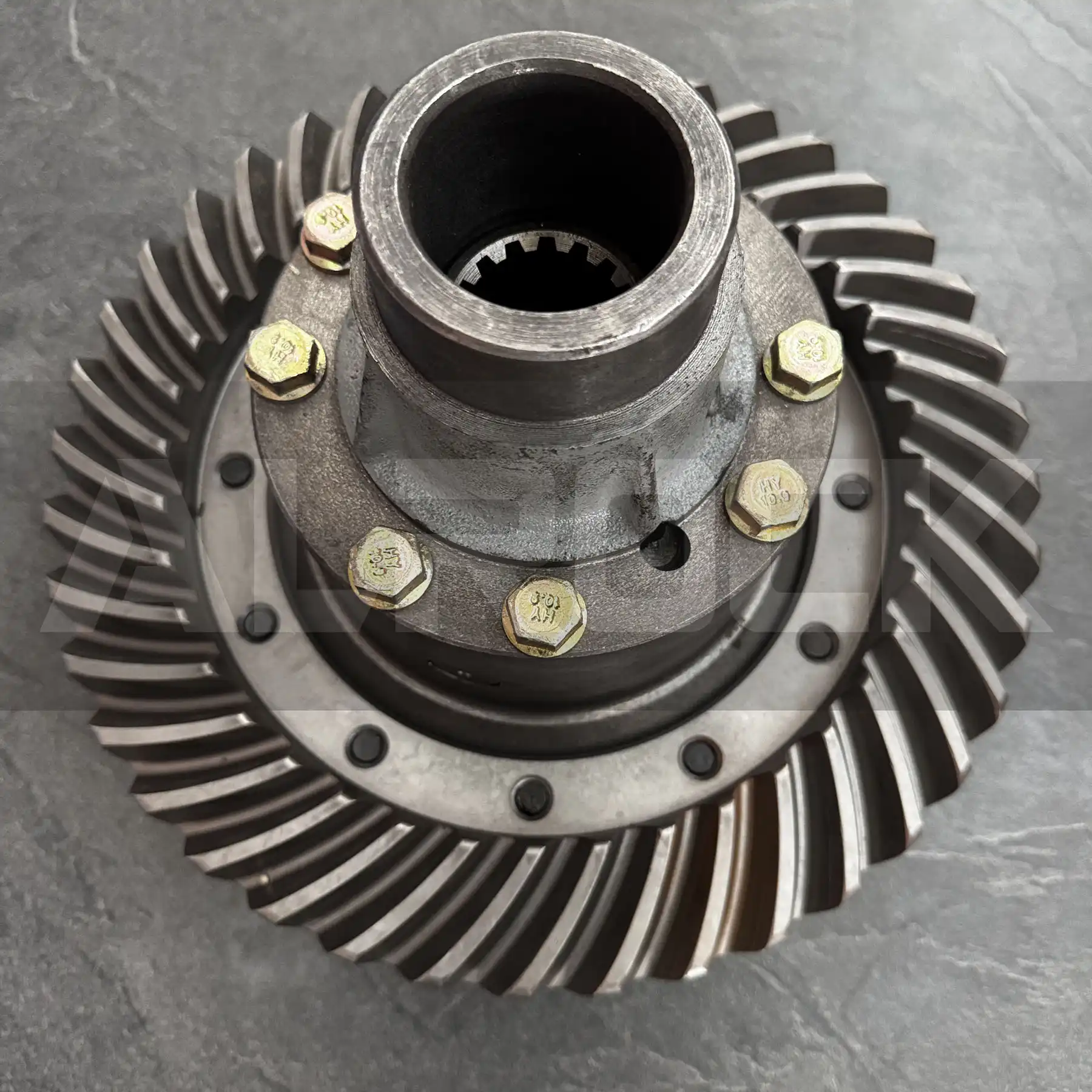

Drive and Driven Bevel Gear Set C110002090033 High-Precision for Rock Drill Jumbo Differentials

Part Number: C110002090033
  • Technical Specifications:
    • Material: 20CrMnTi alloy steel (GB/T 3077 compliant)
    • Heat treatment: Carburized and quenched (case depth: 0.8-1.2mm)
    • Hardness: HRC 58-62 (tooth surface); HRC 30-35 (core)
    • Precision class: ISO 6 (DIN 3962)
  • Performance Metrics:
    • Maximum torque capacity: 500Nm
    • Rated speed: 1500 RPM
    • Operating temperature range: -30°C to +120°C
  • Design Features:
    • 25° pressure angle for load distribution
    • Ground tooth surfaces (Ra 0.8μm)
    • Anti-scuff coating for wear resistance
Add to quote
Heavy-Duty Bevel Gear Set for Rock Drill Jumbo Differentials
This drive and driven bevel gear set is engineered to transmit power in rock drill jumbo differentials, delivering reliable performance in extreme mining conditions. Its precision-machined design ensures smooth torque transfer between the differential and drive wheels, critical for vehicle mobility in rough terrain .



Technical Specifications & Design
  • Core Performance Traits:
    • High-Strength Construction: 20CrMnTi alloy steel with carburized quenching provides 1200MPa tensile strength, while the hardened tooth surface (HRC 58-62) resists wear in abrasive environments .
    • Precision Engineering: ISO 6 class accuracy (DIN 3962) with ground tooth surfaces (Ra 0.8μm) minimizes noise and vibration, reducing energy loss during operation .
    • Load Optimization: 25° pressure angle distributes contact stress evenly across teeth, enabling 500Nm torque transmission without premature failure .



Performance Advantages
  • Durability:
    • Anti-scuff coating reduces friction, extending service life by 50% compared to uncoated gears, as validated by 10,000-hour wear testing (ASTM G133) .
    • Balanced core hardness (HRC 30-35) ensures toughness to withstand impact loads during sudden direction changes .
  • Environmental Resilience:
    • Operates reliably from -30°C (cold underground mines) to +120°C (high-friction differential systems), maintaining mechanical properties across temperature extremes .



Applications
  • Rock Drill Jumbos: Integral to differential assemblies, facilitating power distribution to drive wheels in mining and tunneling operations.
  • Heavy-Duty Equipment: Compatible with other off-highway vehicle differentials requiring robust bevel gear sets.
