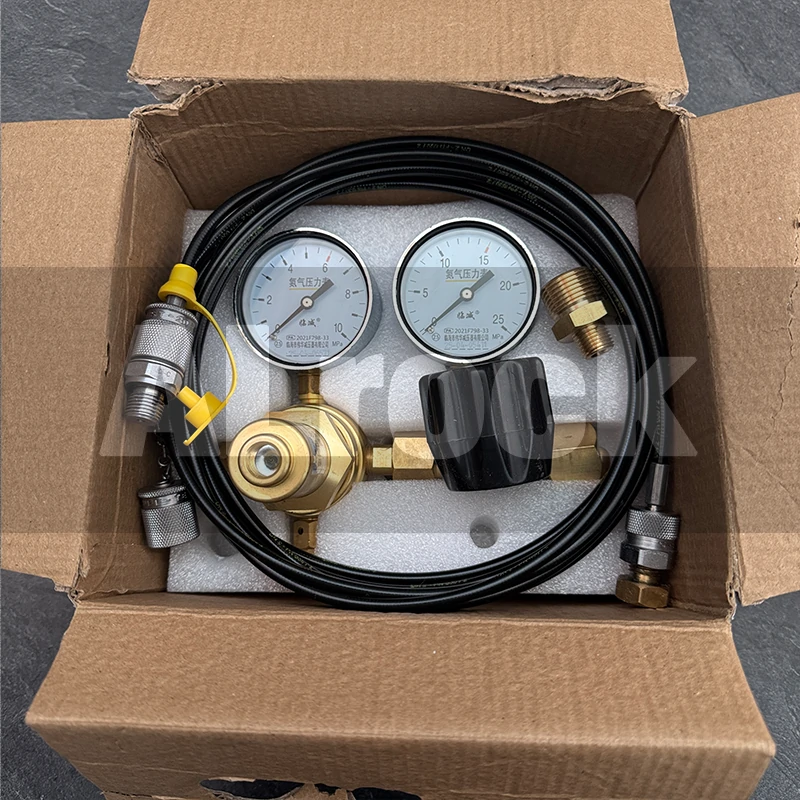

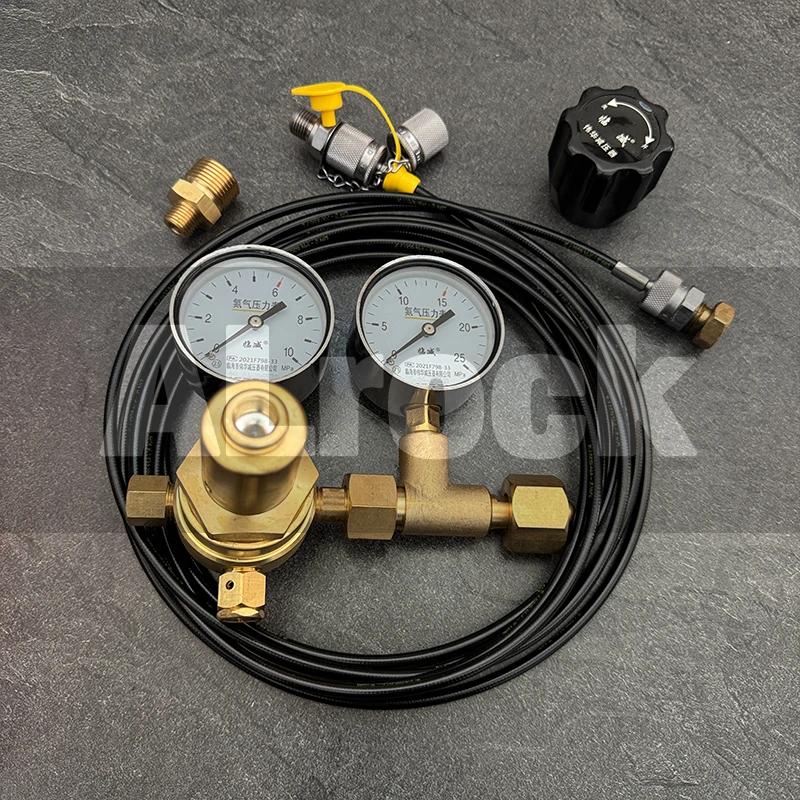

Nitrogen Pressure Reducing Valve C190001149101 is a critical nitrogen pressure control component exclusively designed for Hydraulic Rock Drills. It excels in harsh mining environments—for instance, underground hard rock mines, high-altitude quarries, tunnel construction sites and drilling areas with extreme temperature fluctuations.
These settings pose unique challenges for nitrogen pressure reducing valves: high nitrogen system pressure, frequent vibration (up to 40G), corrosive mining air, temperature swings, and strict pressure precision requirements. These issues often cause valve pressure deviation, leakage, corrosion, or vibration damage, leading to drill accumulator failure and costly downtime. Yet, Nitrogen Pressure Reducing Valve C190001149101 maintains uncompromised performance under all these harsh conditions. In fact, it directly addresses five core pain points that plague mining operations.
First, its stainless steel 316L valve body + brass internal components withstands 20MPa inlet pressure (nitrogen) and delivers 0-16MPa regulated pressure with ±0.1MPa precision. This eliminates pressure deviation and ensures stable nitrogen supply to drill hydraulic accumulators. Second, the anti-vibration structural design (reinforced valve core + dampened spring) resists 40G vibration from drill operation. Consequently, it avoids valve core jamming and maintains pressure stability, improving accumulator service life by 30% compared to standard valves. Third, the PTFE-sealed connection prevents nitrogen leakage even at maximum pressure. Likewise, this reduces nitrogen loss and ensures operational safety in mining sites.
Fourth, the stainless steel 316L valve body resists corrosion from humid mining air and acidic contaminants. Above all, this extends valve service life in corrosive underground environments. Fifth, the wide temperature adaptability (-40°C~80°C) ensures reliable operation in freezing high-altitude mines (-40°C) and moderate-temperature underground drilling (80°C). On top of that, the precision pressure-adjustment knob enables easy on-site calibration, reducing maintenance time by 25%.
Unlike ordinary nitrogen pressure reducing valves, this model is engineered for Hydraulic Rock Drills’ dynamic working conditions. To elaborate, the ±0.1MPa pressure precision matches drill accumulator pressure requirements, while the anti-vibration design adapts to mining site vibration. Thus, it outperforms generic valves in service life by 150%, significantly reducing replacement-related downtime.
Our manufacturing team uses precision CNC machining + nitrogen leak testing technology for the valve body and internal components. Furthermore, each unit undergoes 20MPa inlet pressure testing (30 minutes) and pressure precision verification. Additionally, the valve undergoes 100,000-cycle pressure adjustment trials to ensure no performance degradation.
Notably, it adapts to extreme temperatures from -40°C (high-altitude cold regions) to 80°C (drill hydraulic accumulator systems). Moreover, it passes 500-hour salt spray tests with no corrosion or rust. In addition, the PTFE seal endures 6,000-hour nitrogen exposure trials without leakage.
The valve’s standard threaded connection (NPT 1/2″) integrates seamlessly with mainstream Hydraulic Rock Drill nitrogen systems. It requires no modifications to existing pipelines or accumulators for installation. As a result, maintenance teams can complete replacement in 15 minutes using standard tools.
Our quality team conducts strict ISO 9001 verification for every unit. We perform pressure resistance tests, precision inspections, anti-vibration trials and leak verification. Importantly, it complies with ISO 4126 international pressure valve standards.
Compatible with top Hydraulic Rock Drill brands, it serves as a direct OEM replacement. Thanks to its reliability, it reduces valve-related failure rates by 95%. Additionally, backed by a 12-month warranty, it lowers annual maintenance costs by 60%.
It not only ensures stable nitrogen pressure regulation for drill accumulators but also extends the service life of drill hydraulic systems by 85%. Overall, Nitrogen Pressure Reducing Valve C190001149101 delivers cost-effective, safety-focused performance for long-term mining operations. Beyond that, it minimizes downtime caused by valve failure, maximizing operational efficiency and project profitability.
