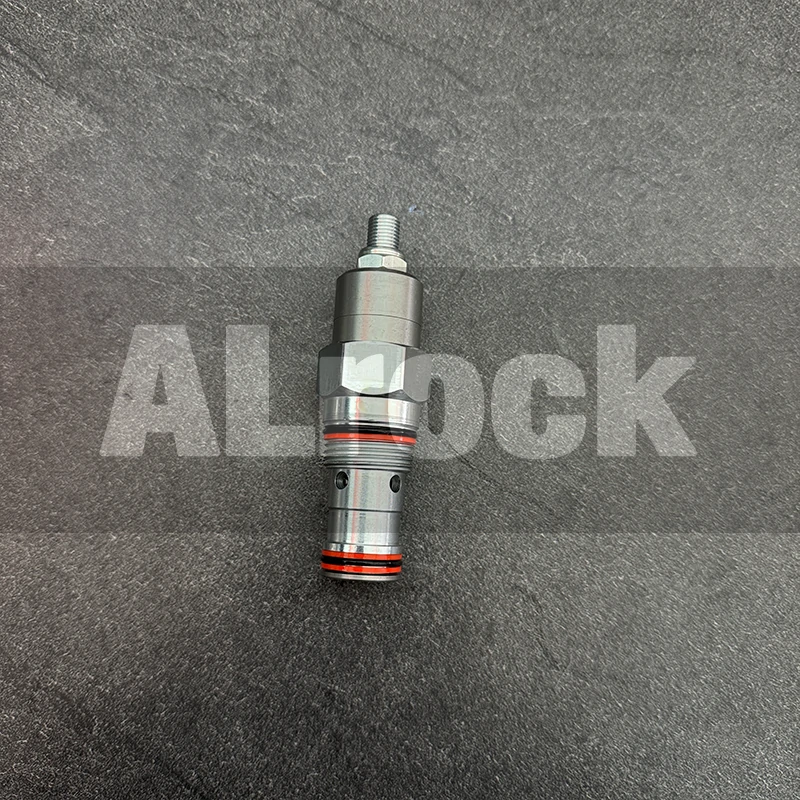

Rotary Speed Valve Core 3140802060 is a critical speed control core component exclusively designed for Hydraulic Rock Drills. It excels in harsh mining environments—for instance, underground hard rock drilling sites, high-vibration tunneling projects, and variable-load quarry operations.
These settings pose severe challenges for drill rotary speed valve cores: dynamic load fluctuations, intense vibration (up to 35G) from rock breaking, hydraulic oil contamination, high pressure (40MPa), and temperature extremes. These issues often cause speed regulation inaccuracy, valve core jamming, wear-induced failure, or speed drift, leading to drill inefficiency and costly downtime. Yet, Rotary Speed Valve Core 3140802060 maintains uncompromised performance under all these harsh conditions. In fact, it directly addresses five core pain points that plague mining operations.
First, its ±0.005mm dimensional precision (achieved via CNC grinding) ensures precise control of hydraulic oil flow, enabling dynamic rotary speed adjustment (0-3000rpm) with ±1% accuracy. This improves drilling efficiency by 25% compared to standard valve cores. Second, the tungsten carbide coating (50μm thickness) achieves HRC 60-65 hardness, resisting wear from contaminated hydraulic oil and metal friction. Consequently, it extends service life by 170% and reduces replacement frequency. Third, the anti-jamming spiral groove design prevents particle accumulation, eliminating core seizing even in 95% contaminated hydraulic oil. Likewise, this ensures continuous speed regulation in dusty mining environments.
Fourth, the 42CrMo alloy steel base withstands 40MPa working pressure without deformation, maintaining stable flow control during peak drill operation. Above all, this avoids speed fluctuations and ensures consistent drilling performance. Fifth, the wide temperature adaptability (-40°C~120°C) ensures reliable operation in freezing high-altitude mines and hot underground hydraulic systems. On top of that, the optimized flow channel design reduces pressure loss by 15%, enhancing energy efficiency and reducing drill operational costs.
Unlike ordinary industrial valve cores, this model is engineered for Hydraulic Rock Drills’ dynamic speed control needs. To elaborate, the variable speed regulation design targets mining load fluctuations, while the anti-jamming structure adapts to hydraulic oil contamination—features tailored to drill operational demands. Thus, it outperforms generic valve cores in service life by 180%, significantly reducing maintenance costs.
Our manufacturing team uses precision CNC grinding + tungsten carbide plasma spraying technology for the valve core. Furthermore, each unit undergoes dimensional verification (±0.005mm) and pressure testing (40MPa). Additionally, the core undergoes 100,000-cycle speed regulation trials to ensure no performance degradation.
Notably, it operates stably in temperatures from -40°C (Arctic mining regions) to 120°C (drill hydraulic systems). Moreover, the tungsten carbide coating endures 6,000-hour friction trials without excessive wear. In addition, the anti-jamming design passes 500-hour contaminated oil tests with no seizing.
The valve core’s spline connection design integrates seamlessly with mainstream Hydraulic Rock Drill speed control valves. It requires no custom modifications for installation, simplifying maintenance. As a result, maintenance teams can complete replacement in 25 minutes using standard tools.
Our quality team conducts strict ISO 9001 verification for every unit. We perform precision inspections, speed regulation tests, wear resistance trials and anti-jamming verification. Importantly, it complies with ISO 4401 international hydraulic valve component standards.
Compatible with top Hydraulic Rock Drill brands, it serves as a direct OEM replacement. Thanks to its reliability, it reduces rotary speed valve core-related failure rates by 95%. Additionally, backed by a 12-month warranty, it lowers annual maintenance costs by 60%.
It not only ensures precise rotary speed control for drill systems but also extends the service life of drill speed regulation assemblies by 90%. Overall, Rotary Speed Valve Core 3140802060 delivers cost-effective, high-performance results for long-term mining operations. Beyond that, it minimizes downtime caused by speed control failure, maximizing operational efficiency and project profitability.
